XFB-234604D1 Industrial Fanless PC, wall-mount and FCC Class A certified

Name: XFB-234604D1 Industrial Fanless PC, wall-mount and FCC Class A certified
Availability: InStock
Author: Intronix Systems

Ref : XFB-234604D1

Intel® Core™ i3/i5/i7 processor
6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI
2x CAN2.0c (optional), 16x Opto-isolated DIO (optional)
9 to 36 VDC power input, AT/ATX mode
Support Windows 10/11 and Linux
CE and FCC Class A certified

9-36VDC power input

Fanless

Windows 10/11

Linux

Wide temperature

XFB-234604D1 Industrial Fanless PC, wall-mount and FCC Class A certified

Quantity

Request more information

This product is currently out of stock. It will be restocked shortly.

Technical datasheet

Overview

Présentation XFB-234604D1 Industrial Fanless PC, wall-mount and FCC Class A certified

We are pleased to introduce the XFB-234604D1 fanless industrial computer.

The XFB-234604D1 fanless industrial PC is designed to meet the demanding requirements of industrial environments. Its intelligent and robust design allows you to quickly replace or upgrade CPU and I/O modules, reducing downtime and maintenance costs.

This industrial computer supports 10th to 12th generation Intel® Core™ i3, i5 and i7 processors (TDP 15 W), offering a balanced ratio between computing performance and energy efficiency. It also supports up to 32 GB of DDR4 SO-DIMM memory (2666 to 3200 MHz), ensuring capabilities suitable for industrial control, edge computing and IIoT applications. Two storage options are available: mSATA (10th generation) or M.2 2280 SATA (11th/12th generation).

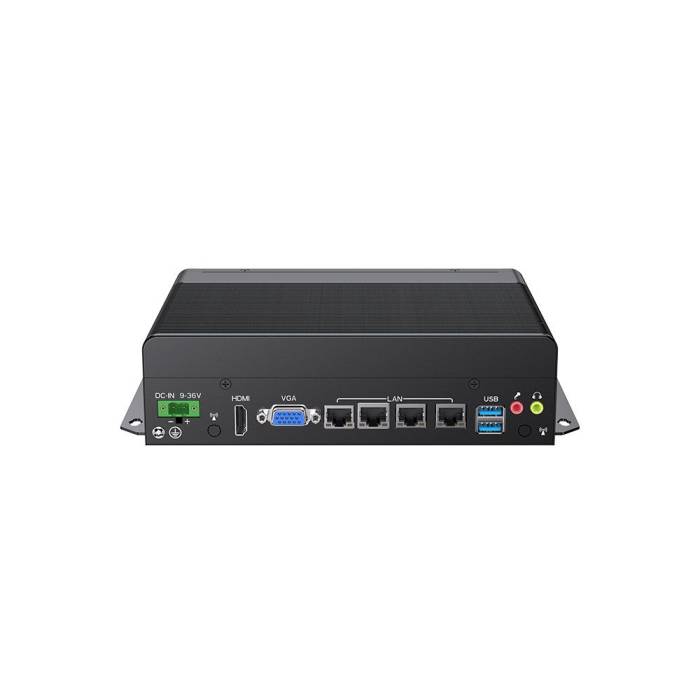

The XFB-234604D1 features 4 Intel® I226-V Gigabit LAN ports, 6 COM ports (configurable as RS-232/422/485 depending on model), 4 USB ports (including 2 USB 3.0), and HDMI and VGA outputs for display. Optional modules offer 16 isolated DIO I/O and up to 2 CAN 2.0b buses, extending its scope to embedded systems and industrial automation.

This PC supports the following communications: Wi-Fi, 4G/5G, Bluetooth and GNSS via Mini PCIe or M.2 E-Key, three SMA slots for external antennas and an internal SIM slot. Robust thanks to its aluminium alloy design and optimised for operating temperatures ranging from -10°C to +60°C, the Fanless PC XFB-234604D1 is definitely ideal for use in harsh environments.

Ordering information

Ref.	Description
XFB-234604D1I310U	I3-10110U Box PC with 4LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-234604D1I311G	I3-1115G4 Box PC with 4LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-234604D1I312U	I3-1215U Box PC with 4LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-234604D1I510U	I5-10210U Box PC with 4LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-234604D1I511G	I5-1145G7 Box PC with 4LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-234604D1I512U	I5-1235U Box PC with 4LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-234604D1I710U	I7-10510U Box PC with 4LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-234604D1I711G	I7-1185G7 Box PC with 4LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-234604D1I712U	I7-1255U Box PC with 4LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0

👉 If you have a technical question or need a quote, contact us directly using the form below.

Specifications

Features XFB-234604D1 Industrial Fanless PC, wall-mount and FCC Class A certified

SYSTEM
CPU	Intel® Core™ i3-8145U i5-8265U	Intel® Core™ i3-10110U i5-10210U i7-10510U	Intel® Core™ i3-1115G4 i5-1145G7 i7-1185G7	Intel® Core™ i3-1215U i5-1235U i7-1255U
CPU TDP	15W
Memory	1x DDR4 2666 MHz SO-DIMM up to 32GB		1x DDR4 3200 MHz SO-DIMM up to 32GB
Storage	1x mSATA		1x M.2 2280 SATA
BIOS	AMI UEFI
Watchdog Timer	Software programmable. Supports 256 levels system reset
I/O PORTS
USB	2x USB 3.0 2x USB 2.0
Serial	6x COM (1x RS-232/422/485,5x RS-232)		6x COM (1x RS-232/485,1x RS-232/422/485, 4x RS-232)
Ethernet	4x RJ45 GbE Intel® I226-V
Display	1x HDMI, 1x VGA
SIM Card Slot	1x SIM card slot (inside)
DIO	16x Opto-isolated DIO (optional)
CAN bus	2x CAN2.0b (optional)
Antenna	3x SMA antenna holes
EXPANSION SLOT
Mini PCIe	1x Full length Mini PCIe		N/A
M.2	N/A		1x M.2 2230 E-Key 1x M.2 2280 SATA
RF COMMUNICATION
Wi-Fi	Mini PCIe		M.2 2230 E-Key
Cellular	Mini PCIe
Bluetooth	Mini PCIe		M.2 2230 E-Key
GNSS	Mini PCIe
AUDIO
Audio	Mic in, line out
POWER
Button	Yes
Remote Power On/Oﬀ	4-Pin Remote SW&Power LED
DC Input	9 to 36 VDC
Power Mode	AT/ATX
OPERATING SYSTEM
Windows	Windows 10 Windows 11
Linux	Ubuntu
MECHANICAL
Dimensions (W x D x H mm)	200 x 154 x 56 mm (7.87 x 6.06 x 2.21 inches)
Weight (kg)	2 kg (4.41 lbs)
Mounting	Wall-mount
Material	Aluminum alloy
ENVIRONMENT
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	10% to 95% @40°C (104°F), non-condensing
CERTIFICATION
EMC	CE FCC Class A

Documents

Documentation XFB-234604D1 Industrial Fanless PC, wall-mount and FCC Class A certified

Datasheet XFB-234604D1 Industrial Fanless PC, wall-mount and FCC Class A certified

Datasheet Fanless Box PC XFB-234604D1 Intronix Systems
