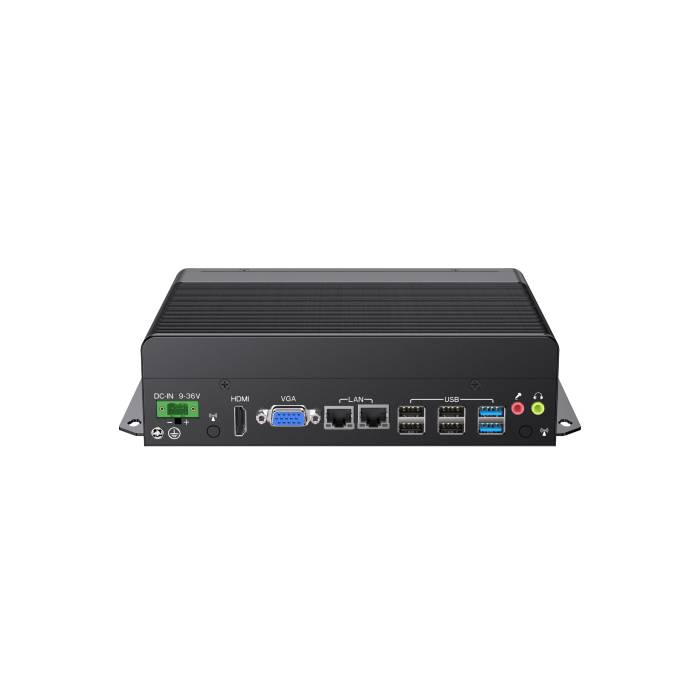

Fanless Industrial Computer XFB-232608D1 6xCOM 2xLAN 8xUSB 1xVGA 1xHDMI 2xCAN2.0

Name: Fanless Industrial Computer XFB-232608D1 6xCOM 2xLAN 8xUSB 1xVGA 1xHDMI 2xCAN2.0
Availability: InStock
Author: Intronix Systems

Ref : XFB-232608D1

Intel® Core™ i3/i5/i7 processor
6x COM, 2x LAN, 8x USB, 1x VGA, 1x HDMI
2x CAN2.0 (optional), 16x Opto-isolated DIO (optional)
9 to 36VDC power input
Windows 10/11, Ubuntu operating system

9-36VDC power input

Fanless

Windows 10/11

Linux

Wide temperature

Fanless Industrial Computer XFB-232608D1 6xCOM 2xLAN 8xUSB 1xVGA 1xHDMI 2xCAN2.0

Quantity

Request more information

This product is currently out of stock. It will be restocked shortly.

Technical datasheet

Overview

Overview Fanless Industrial Computer XFB-232608D1 6xCOM 2xLAN 8xUSB 1xVGA 1xHDMI 2xCAN2.0

We are pleased to present the Intronix Systems XFB-232608D1 Fanless PC.

The compact aluminium casing limits points of failure, enhances mechanical strength and improves immunity to vibrations and electromagnetic interference. Combined with effective passive heat dissipation, it enables reliable and stable operation over a temperature range of -10°C to +60°C.

The system is based on Intel® Core™ i3, i5 and i7 processors (10th to 12th generation, TDP 15 W), combined with a DDR4 SO-DIMM slot up to 32 GB. For storage, the XFB-232608D1 Fanless PC incorporates an mSATA or M.2 NVMe 2280 slot, ensuring high performance for industrial applications.

In terms of interfaces, this industrial computer supports 6 communication ports (including 1x RS-232/422/485), 2 Intel® I226-V Gigabit LANs, 8 USB ports (2x USB 3.0 and 6x USB 2.0), as well as HDMI and VGA outputs. Additional options include up to 16 isolated DIO inputs/outputs and 2 CAN 2.0b buses for embedded and industrial applications.

Expansion options cover Wi-Fi, 4G/5G, Bluetooth and GNSS via Mini PCIe or M.2 E-Key, including three SMA connectors for external antennas. A 256-level programmable watchdog, a 9 to 36 VDC AT/ATX-compatible power supply and Remote Power On functionality complete a package designed for automation, embedded systems and edge computing.

Technical advantages

6 COM, 2 GbE LAN, 8 USB, HDMI + VGA
Isolated DIO and CAN 2.0b options
RF extensions via Mini PCIe or M.2

The XFB-232608D1 Fanless PC is positioned as a flexible and robust solution, suitable for industrial environments.

Ordering information

Ref.	Description
XFB-232608D1I310U	I3-10110U Box PC with 2LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-232608D1I311G	I3-1115G4 Box PC with 2LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-232608D1I312U	I3-1215U Box PC with 2LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-232608D1I510U	I5-10210U Box PC with 2LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-232608D1I511G	I5-1145G7 Box PC with 2LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-232608D1I512U	I5-1235U Box PC with 2LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-232608D1I710U	I7-10510U Box PC with 2LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-232608D1I711G	I7-1185G7 Box PC with 2LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0
XFB-232608D1I712U	I7-1255U Box PC with 2LAN, 6COM, DC 9-36V Input, Phoenix 2P 5.0

👉 If you have any questions or would like a quote, please contact us directly using the form below.

Specifications

Features Fanless Industrial Computer XFB-232608D1 6xCOM 2xLAN 8xUSB 1xVGA 1xHDMI 2xCAN2.0

SYSTEM
CPU	Intel® Core™ i3-8145U i5-8265U	Intel® Core™ i3-10110U i5-10210U i7-10510U	Intel® Core™ i3-1115G4 i5-1145G7 i7-1185G7	Intel® Core™ i3-1215U i5-1235U i7-1255U
CPU TDP	15W
Memory	1x DDR4 2666 MHz SO-DIMM up to 32GB		1x DDR4 3000 MHz SO-DIMM up to 32GB
Storage	1x mSATA		1x M.2 2280 NVMe
BIOS	AMI UEFI
Watchdog Timer	Software programmable. Supports 256 levels system reset
I/O PORTS
USB	2x USB 3.0 6x USB 2.0
Serial	6x COM (1x RS-232/422/485)		6x RS-232 (1x RS-232/422/485 1x RS-232/485)
Ethernet	2x RJ45 GbE Intel® I226-V
Display	1x HDMI, 1x VGA
SIM Card Slot	1x SIM card slot (optional)
DIO	16x Opto-isolated DIO (optional)
CAN bus	2x CAN 2.0b (optional)
Antenna	3x SMA antenna holes
EXPANSION SLOT
Mini PCIe	1x Full length Mini PCIe		N/A
M.2	N/A		1x M.2 2230 E-Key 1x M.2 2280 NVME
RF COMMUNICATION
Wi-Fi	Mini PCIe		M.2 2230 E-Key
Cellular	Mini PCIe
Bluetooth	Mini PCIe		M.2 2230 E-Key
GNSS	Mini PCIe
AUDIO
Audio	Mic in, line out
POWER
Button	Yes
Remote Power On/Off	4-Pin Remote SW&Power LED
DC Input	9 to 36 VDC
Power Mode	AT/ATX
OPERATING SYSTEM
Windows	Windows 10 Windows 11
Linux	Ubuntu
MECHANICAL
Dimensions (W x D x H mm)	200 x 154 x 56 mm (7.87 x 6.06 x 2.21 inches)
Weight (kg)	2 kg (4.41 lbs)
Mounting	Wall-mount
Material	Aluminum alloy
ENVIRONMENT
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	10% to 95% @40°C (104°F), non-condensing
CERTIFICATION
EMC	CE FCC Class A

Documents

Documentation Fanless Industrial Computer XFB-232608D1 6xCOM 2xLAN 8xUSB 1xVGA 1xHDMI 2xCAN2.0

Datasheet Fanless Industrial Computer XFB-232608D1 6xCOM 2xLAN 8xUSB 1xVGA 1xHDMI 2xCAN2.0

Datasheet Fanless Box PC XFB-232608D1 Intronix System
