Technical datasheet
Overview
-Overview Fanless Box PC XFB-232606D1 -10°C to +60°C 9-36VDC power supply Windows 10 or 11

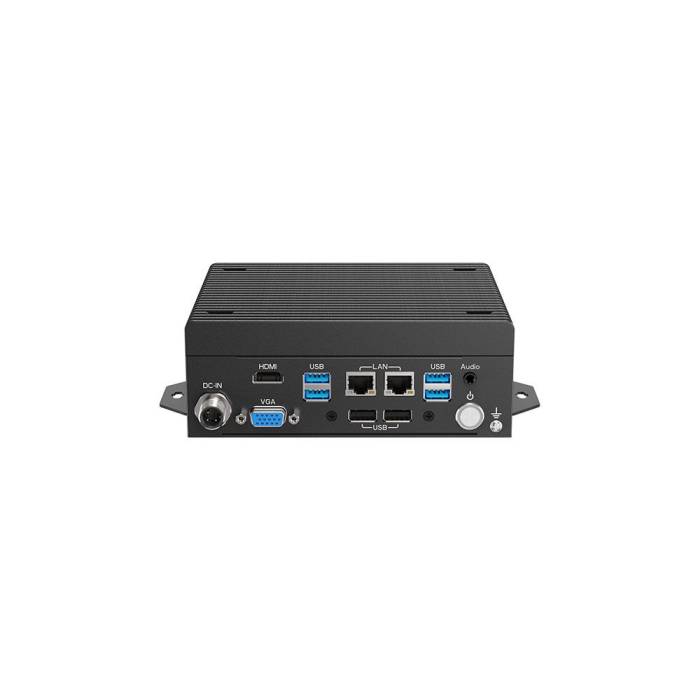

The XFB-232606D1 is a fanless industrial PC designed for applications in automation, supervision and edge computing, for example. Its aluminium alloy chassis offers optimal structural robustness and efficient passive heat dissipation, enabling stable operation in environments ranging from -10°C to +60°C.
The XFB-232606D1 industrial computer supports Intel® Celeron® J6412 or Core™ i3/i5/i7 (10th to 12th generation) processors with a TDP ranging from 10 to 15 W, ensuring a balance between computing power and energy consumption. The DDR4 SO-DIMM memory, clocked at up to 3200 MHz, can reach 32 GB, suitable for real-time processing and multitasking applications.
Storage is based on an M.2 2280 NVMe slot, enabling high throughput and low latency for intensive applications. Expansion is facilitated by a full-size Mini PCIe slot and an M.2 2230 E-Key, allowing the addition of Wi-Fi, Bluetooth, 4G/5G or GNSS modules. Three SMA connectors and an internal SIM slot complete the communication options.
In terms of connectivity, the XFB-232606D1 Fanless PC offers 6 COM ports (2x RS-232/485 and 4x RS-232), 2 Intel® I210AT Gigabit LAN ports, 6 USB ports (4x USB 3.0 + 2x USB 2.0), an HDMI output and a VGA output. Optional CAN 2.0b buses and a 256-level programmable watchdog enhance the security and stability of industrial systems. The 9~36 VDC power supply supports AT/ATX modes with remote control via an on/off button.
Key features of the XFB-232606D1 PC
- Intel® Celeron® and Core™ i3/i5/i7 processors (10th to 12th generation)
- 6x COM, 2x Gigabit LAN, 6x USB, 1x HDMI, 1x VGA
- Mini PCIe and M.2 2280/2230 extensions for RF modules
- Fanless, extended temperature range -10°C to +60°C
- Compact aluminium chassis, wall mountable
All in all, the XFB-232606D1 Fanless PC is a modular, high-performance solution that is ideal for harsh industrial environments.
Ordering information
|
Ref. |
Description |
|
XFB-232606D1J6412 |
J6412 Box PC with 2LAN, 6COM, DC 9-36V Input, M12 3P |
|
XFB-232606D1I310U |
I3-10110U Box PC with 2LAN, 6COM, DC 12V Input, M12 3P |
|
XFB-232606D1I311G |
I3-1115G4 Box PC with 2LAN, 6COM, DC 12V Input, M12 3P |
|
XFB-232606D1I312U |
I3-1215U Box PC with 2LAN, 6COM, DC 9-36V Input, M12 3P |
|
XFB-232606D1I510U |
I5-10310U Box PC with 2LAN, 6COM, DC 12V Input, M12 3P |
|
XFB-232606D1I511G |
I5-1135G7 Box PC with 2LAN, 6COM, DC 12V Input, M12 3P |
|
XFB-232606D1I512U |
I5-1235U Box PC with 2LAN, 6COM, DC 9-36V Input, M12 3P |
|
XFB-232606D1I711G |
I7-1195G7 Box PC with 2LAN, 6COM, DC 12V Input, M12 3P |
|
XFB-232606D1I712U |
I7-1255U Box PC with 2LAN, 6COM, DC 9-36V Input, M12 3P |
👉 If you have any questions or would like a quote, please contact us directly using the form below.
Specifications
