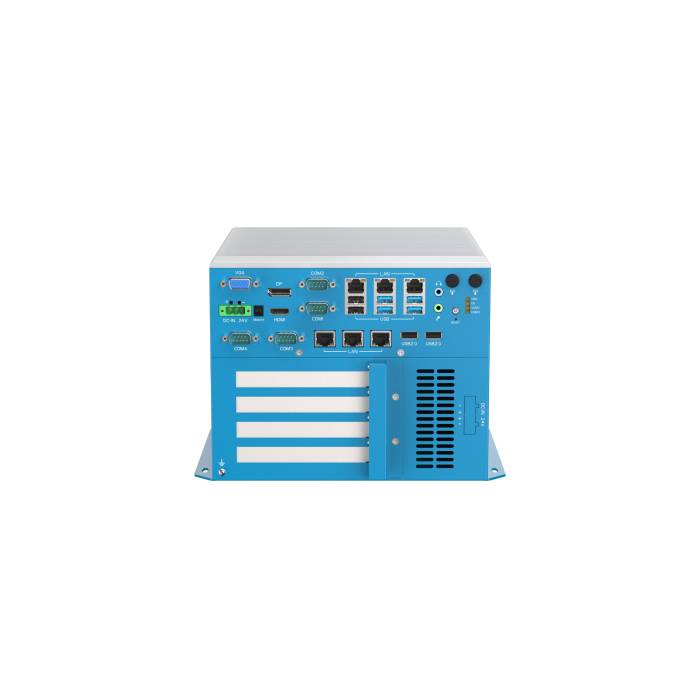

XEB-226408D1/4PE Modular Fanless Box PC for Industrial Applications

We are pleased to present the XEB-226408D1/4PE modular fanless PC box with 4 PCI/PCie expansion slots.

This fanless industrial PC has been designed to offer a powerful computing solution and modularity that is perfectly suited to complex industrial environments. Its robust aluminium design and modular architecture make it a true powerhouse of performance, stability and connectivity.

It supports Intel® Comet Lake-S processors (i3, i5, i7, i9) up to 65 W TDP, combined with the Intel® H420E chipset, guaranteeing consistent performance for intensive data processing, real-time control and automated system management. With two DDR4 SO-DIMM slots that can accommodate up to 64 GB of memory, it meets the most demanding computing needs while maintaining controlled energy efficiency.

This model stands out for its exceptional expandability: it features two PCI slots, one PCIe x16 and one PCIe x4, allowing for easy addition of specialised cards (GPU, video acquisition, I/O control, industrial communication or embedded AI). This flexibility makes it an ideal solution for integrators looking for a durable product that can be fully configured to their application needs.

Its connectivity meets industrial requirements: six Intel® Ethernet ports (including five I210-AT for deterministic networks), eight USB ports, four configurable serial ports, and three video outputs (HDMI, DP, VGA). Multiple M.2 slots (M-Key, E-Key, B-Key) pave the way for Wi-Fi 6, Bluetooth, 4G/5G and GNSS wireless communications, providing total connectivity for industrial IoT applications.

The system supports Windows 10/11 and Ubuntu Linux, ensuring easy integration into a variety of software architectures. Its fanless design and rugged enclosure allow you to use it in harsh conditions: temperatures from -10°C to +50°C, humidity up to 95%, vibrations and dust.

This PC is particularly suitable for production automation, industrial robotics, supervision, intelligent transport and industrial imaging systems. Its compact size and power, along with its four expansion slots, allow it to replace larger computers, while offering better thermal efficiency and simplified maintenance.

This model stands out from the competition thanks to its ideal combination of features: four expansion slots, six LAN ports, eight USB ports, four COM ports and an ultra-reliable fanless design. It is the strategic solution for integrators looking for a high-performance, communicative and scalable machine that is ready for tomorrow's applications.

Ordering information

💡 For a personalised quote, please contact us using the form below.
