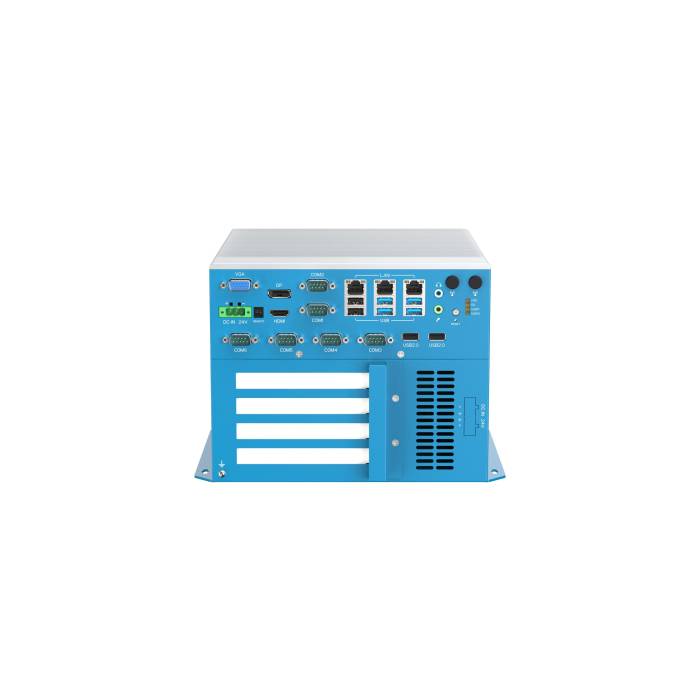

Modular industrial computer XEB-223608D1/4PE with 4 expansion slots: 2xPCI, 1xPCIex16, 1xPCIex4

We are pleased to present the XEB-223608D1/4PE modular industrial PC with 4 expansion slots.

Made from aluminium alloy, this robust chassis ensures excellent heat dissipation and high mechanical strength. Its compact dimensions (220 × 256 × 176 mm) and weight of 5.6 kg make it easy to mount on a wall.

Available with Intel® Comet Lake-S processors (i3, i5, i7 or i9) and a TDP of 65 W, this PC offers high computing power. The XEB-223608D1/4PE also supports two DDR4 SO-DIMM slots with a maximum memory capacity of 64 GB.

For storage, this computer features two M.2 2280 SATA ports. The AMI BIOS (128 Mbit SPI Flash) ensures reliable boot-up and advanced configuration options.

Extensive connectivity

The connectivity is designed to meet the needs of the industry:

• USB ports: 4 USB 3.0 ports and 4 USB 2.0 ports
• Serial ports: 6 COM ports, including 3 configurable RS-232/485
• Network: 3 Ethernet ports, including 1x Intel® I219-LM and 2x Intel® I210-AT for redundancy support or critical network applications
• Display: triple video output (DP, HDMI, VGA) compatible with multiple screens
• SIM slot and 6 SMA connectors for external antennas

Expansion and modularity

The chassis offers multiple expansion options:

• PCI/PCIe: 2x PCI, 1x PCIe x16, 1x PCIe x4
• M.2: 2x M-Key (2280), 1x E-Key (2230), 1x B-Key (3052)

These interfaces allow the addition of graphics cards, specific I/O, or RF communication modules.
