Technical datasheet
Overview

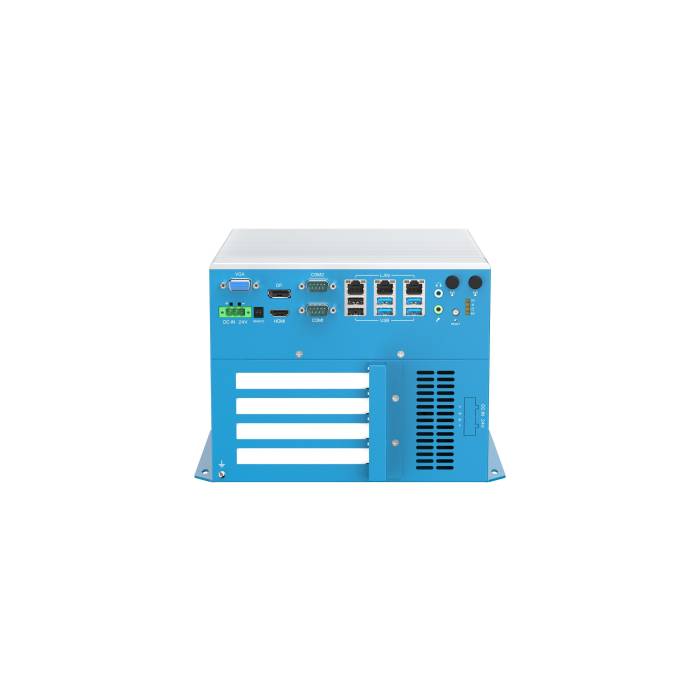

-Overview XEB-223206D1/4PE modular industrial PC, 4 slots, 2xPCI, 1xPCIex16, 1xPCIex4
We are pleased to present the XEB-223206D1/4PE modular industrial PC from Intronix Systems.
The XEB-223206D1/4PE is an expandable industrial computer designed to meet the complex needs of industrial applications. It features 10th and 11th generation Intel processors (Core i3/i5/i7/i9), as well as Pentium and Celeron processors, allowing it to adapt to applications ranging from machine control to real-time data collection.
Operating on a 24 VDC power supply and without a fan, this PC combines reliability, robustness and performance, even in harsh conditions such as dust, vibration or extreme temperatures. Its aluminium design and wall-mounting capability make it a compact yet robust solution for industry.
The strengths of this expandable industrial computer are:
- Highly adaptable: cards and modules can be added according to specific needs.
- Versatile connections: network, serial, USB, video, RF and cellular.
- Industrial reliability: fanless, wide temperature range, wall mountable.
- Performance: configurable processor and memory for light or intensive tasks.
- Extensive connectivity: Wi-Fi 6, Bluetooth, GNSS and 4G/5G for advanced connected applications.
Ordering information
|
Ref. |
Description |
|
XEB-223206D1-4PE |
3x LAN, 2x COM (1x RS-232/485), 6x USB, 2xPCI, 1xPCIex16, 1x PCIex4, 1x DP, 1x VGA, 1x HDMI |
👉 Contact our team of modular PC experts now for any questions or for a quote.
