18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65

Quantity

This product is currently out of stock. It will be restocked shortly.

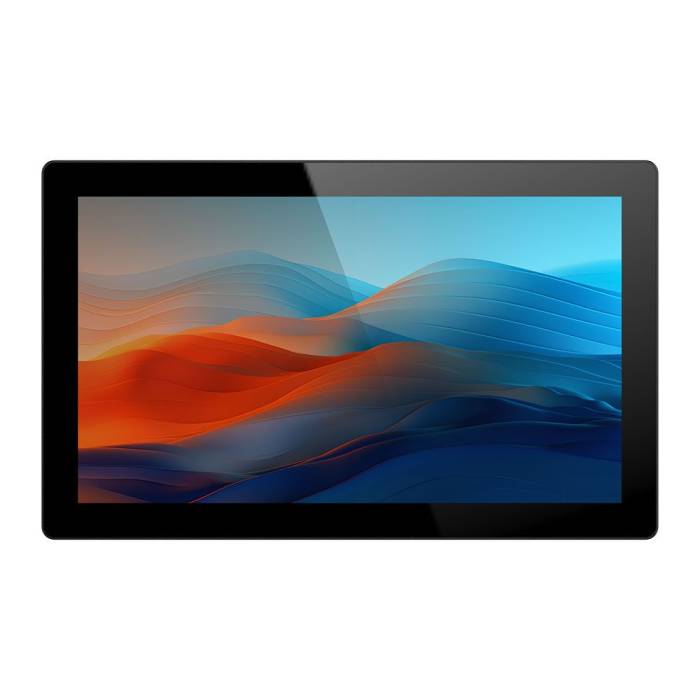

18.5’’ Industrial Monitor XIM-23185D1 with 300-nits brightness

18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65

Name: 18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65
Availability: InStock
Author: Intronix Systems

Ref : XIM-23185D1

18.5’’ Full HD (1920x1080) for sharp image clarity
Capacitive multitouch or 5-wire resistive touch technology
IP65 front protection against dust and water splashes
Optimized thermal dissipation with aluminum chassis
Wide power input (12-24 VDC) with low consumption (10 W typical)

Alimentation 12-24VDC

IP65

Touch display

Wide temperature

18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65

Quantity

Request more information

This product is currently out of stock. It will be restocked shortly.

Technical datasheet

Overview

Overview 18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65

Industrial environments are tough on equipment. High temperatures, dust, humidity, and constant operation put severe stress on electronic systems. The XIM-23185D1 industrial monitor was designed to meet these challenges, offering exceptional durability, precise touch response, and advanced thermal control for uninterrupted performance.

Featuring an 18.5’’ Full HD display, an IP65-rated front panel, and a rugged aluminum housing, this monitor is built for demanding applications. With its wide voltage input (12-24 VDC) and versatile connectivity (VGA, DVI, HDMI/DP), it integrates seamlessly into both legacy systems and modern setups.

Industrial-grade design for maximum durability

The XIM-23185D1 boasts a solid aluminum enclosure engineered for shock resistance and passive heat dissipation. Its versatile mounting options (VESA or panel mount) make it ideal for industrial cabinets, kiosks, and operator panels.

High-quality visuals for harsh environments

Enjoy crystal-clear visuals with Full HD resolution, 300 nits brightness, and an ultra-wide viewing angle (85°/85°/85°/85°). The touch screen is calibrated for accuracy and responsiveness, even in challenging industrial conditions.

Versatile connectivity for easy integration

The monitor supports VGA, DVI, HDMI/DP, ensuring compatibility with both old and new systems. A dedicated USB 2.0 port manages touch control for seamless operation.

Ordering information

Ref.	Description
XIM-23185D1R	18.5" LCD Industrial Monitor with resistive touch, DC12-24V input, Phoenix 2P TB
XIM-23185D1C	18.5" LCD Industrial Monitor with P-CAP touch, DC12-24V input, Phoenix 2P TB

Boost your system’s reliability with a heat-optimized industrial monitor.
Contact our team today for pricing, customization options, and expert technical guidance.

Specifications

Features 18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65

DISPLAY
Size	18.5-inch
Touch type	Projected capacitive multitouch 5-wire resistive touch (optional)
Transmittance	87% (Capacitive) 80% (Resistive)
Control interface	USB
Surface hardness	≥7H ≥3H
Resolution	1920 x 1080
Luminance	300 nits
Contrast ratio	1000: 1
View angles	85 (left), 85 (right), 85 (up), 85 (down)
LED Lifetime	30 000 hrs
Color	16.7M
I/O PORTS
USB	1x USB 2.0
Display	1x DP / HDMI (select one) 1x VGA 1x DVI
POWER
Button	Yes
DC Input	12 to 24 VDC
Power Connector	Button
Power Consumption	10W
Power Adaptor	AC-DC, 12V, 5A, 60W
ENVIRONMENT
Operating temperature	-10°C to 50°C (14°F to 122°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Relative humidity	10% to 95% @ 40°C (104°F), non-condensing
Vibration	5 to 500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
IP Rating	IP65 compliant (For Front Panel)
MECHANICAL
Dimensions (W x D x H mm)	467.4 x 288 x 46 mm (18.4 x 11.3 x 2.6 inches)
Weight (kg)	6.1 kg (12.35 lbs)
Mounting	Panel mount Wall mount bracket VESA 100
Material	Aluminum alloy panel All-metal chassis
CERTIFICATION
EMC	CE FCC
PACKING LIST
Packing	1x XIM-23185D1 10x Panel mounting buckles 1x Warranty card

Documents

Documentation 18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65

Datasheet 18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65

Datasheet industrial monitor 18.5-inch XIM-23185D1 Intronix Systems

Additional information

FAQ 18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65

Can this monitor operate in sealed enclosures without extra cooling?

Yes. Thanks to its fanless aluminum heat sink design, it works efficiently without active ventilation.

Does the screen maintain brightness in hot environments?

Absolutely. The thermal control system prevents brightness drops and color distortion even under continuous heat exposure.

Is there a risk of overheating during 24/7 operation?

No. The monitor is engineered for continuous use and tested in high-temperature conditions for reliability.

Can I install the XIM-23185D1 in an environment with strong vibrations?

Yes, its rugged design and passive cooling make it resistant to vibrations without fan failure risks.

Are custom thermal solutions available for extreme conditions?

Yes. Additional thermal optimization (such as conductive mounting solutions) can be provided upon request.

Request a quote or further information

Name

Company

Phone

Address

Zip code

City

Request

By submitting this form, I agree that the information collected may be processed by Intronix Systems for the purposes of the contact request and the ensuing commercial relationship.

Other industrial monitors XIM range

Ref : XIM-23170D1

17’’ Industrial Monitor XIM-23170D1 12-24VDC power input

17’’ LED-backlit display with 5:4 ratio for industrial interfaces Dual touchscreen options: Proje...

Learn More

21.5" Industrial Monitor XIM-23215D1 1920x1080 resolution

Ref : XIM-23215D1

21.5" Industrial Monitor XIM-23215D1 Full HD Display

21.5” Full HD display (1920 x 1080) for crystal-clear image quality. Touchscreen options: Project...

Learn More

Ref : XIM-23101D1

Industrial Monitor XIM-23101D1 10.1’’ Touchscreen for Reliable Performance

10.1’’ LED display with 1280 x 800 resolution for sharp, bright images Front IP65 protection, ide...

Learn More

XIM-23150D1 Industrial Touchscreen Monitor 15” with 1024x768 resolution

Ref : XIM-23150D1

XIM-23150D1 Industrial Touchscreen Monitor 15” with IP65 Front Panel

15" LED-backlit LCD with capacitive or resistive touch options Resolution 1024 x 768 with 350 nit...

Learn More

Focus: Thermal dissipation and overheat protection

Heat is one of the most critical threats to electronic devices in industrial settings. Unlike office environments, factories often expose equipment to constant heat sources such as motors, furnaces, and enclosed cabinets. Poor heat management can drastically shorten the lifespan of a display, cause color degradation, or lead to unexpected shutdowns.

The XIM-23185D1 monitor addresses this challenge with a fanless thermal design leveraging its aluminum housing as a natural heat sink. Aluminum was chosen for its high thermal conductivity, which allows the monitor to disperse heat efficiently across the entire chassis. This passive cooling mechanism ensures the monitor remains within safe operating temperatures without the need for fans—eliminating dust ingress and reducing maintenance.

Key benefits of optimized thermal design

Extended component life: Heat accelerates component aging. Passive cooling ensures stability over years of 24/7 use.
Consistent performance: Prevents brightness dimming and color shifts caused by overheating.
Operational safety: Avoids unplanned downtime due to temperature-induced failures.

The XIM-23185D1 monitor is rated for an operating temperature range of -10°C to +50°C, with humidity tolerance up to 95% (non-condensing). Even in sealed enclosures or heat-intensive environments, the monitor maintains full functionality without thermal throttling.

This thermal reliability makes it an excellent choice for sectors like energy production, heavy manufacturing, and food processing, where long-term stability under high temperatures is non-negotiable.
