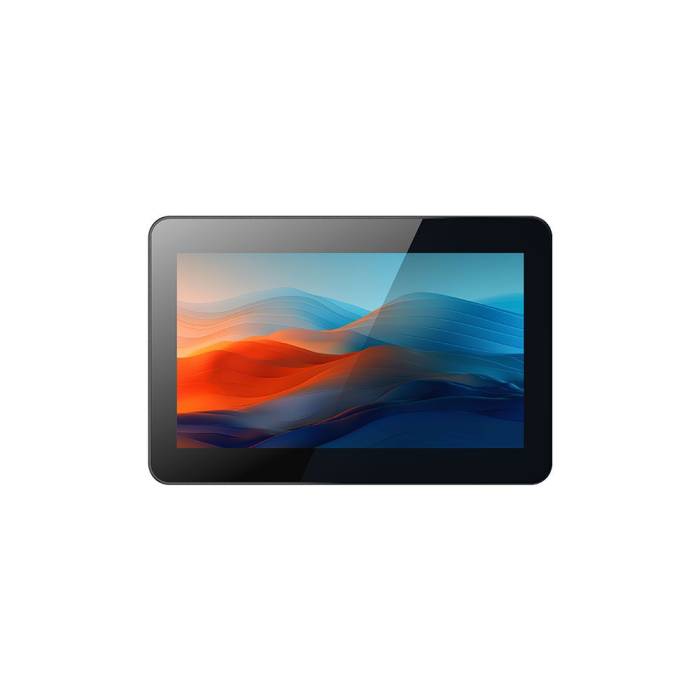

Industrial Monitor XIM-23101D1 10.1’’ Touchscreen for Reliable Performance

In industrial environments, reliability and display precision are non-negotiable. The XIM-23101D1 is engineered to meet these requirements by combining durability, flexibility, and user-friendly design. Equipped with a projected capacitive touchscreen and a front IP65-rated panel for dust and water resistance, this monitor delivers consistent performance in harsh conditions.

With its 10.1-inch compact format, 1280 x 800 resolution, and wide viewing angles, it provides crystal-clear visibility for critical applications. Its metal chassis and ultra-slim design (29 mm) make it easy to integrate into existing systems or new installations.

General Overview

The XIM-23101D1 is designed for industrial applications where long-term reliability and responsive interaction are critical. Featuring a multitouch capacitive panel, it delivers smooth and precise navigation, suitable for automation systems and interactive interfaces.

Its rugged construction in aluminum alloy ensures protection against vibration, heat, and humidity. Operating in a wide temperature range from -10°C to 50°C, it is perfectly suited for production lines, kiosks, and even in-vehicle or embedded systems.

Detailed Technical Features

The XIM-23101D1 uses a LED-backlit display, delivering 350 nits brightness and a 25,000-hour lifetime. Its 1000:1 contrast ratio guarantees excellent readability even in challenging lighting conditions, while the wide viewing angles (80° in all directions) ensure visibility from any position.

The touch surface is rated at ≥7H hardness, providing superior scratch and impact resistance — a crucial advantage in industrial settings where contact with tools and dust is common.

Industrial-Grade Design

With a thickness of only 29 mm and a weight of 1.1 kg, this monitor is both compact and robust. Its IP65-rated front panel safeguards the device from water splashes and dust, making it suitable for wet or dusty work environments.

For installation, two options are available:

• VESA 75 mounting for wall or arm setups
• Panel mounting for cabinets or interactive terminals

Applications and Use Cases

The XIM-23101D1 is ideal for a wide range of industrial scenarios:

• Industry 4.0 and automation: production line supervision
• Interactive kiosks and ordering terminals
• Medical environments: display and control systems
• Transportation and logistics: embedded vehicle systems
• Harsh conditions: dusty, wet, or vibration-prone environments

Advantages Over Standard Solutions

Unlike consumer-grade monitors, the XIM-23101D1 is purpose-built to:

• Withstand extreme conditions
• Deliver long-term reliability
• Support multiple integration options
• Reduce downtime risks with a rugged, industrial-grade design

Why Choose the XIM-23101D1?

Because it combines durability, performance, and adaptability in a compact form factor that’s easy to install. This monitor is a strategic choice for businesses seeking reliable and future-ready hardware.

👉 To do so, please fill out our contact form and/or quote request form below. Our teams are at your disposal.

Ordering information
