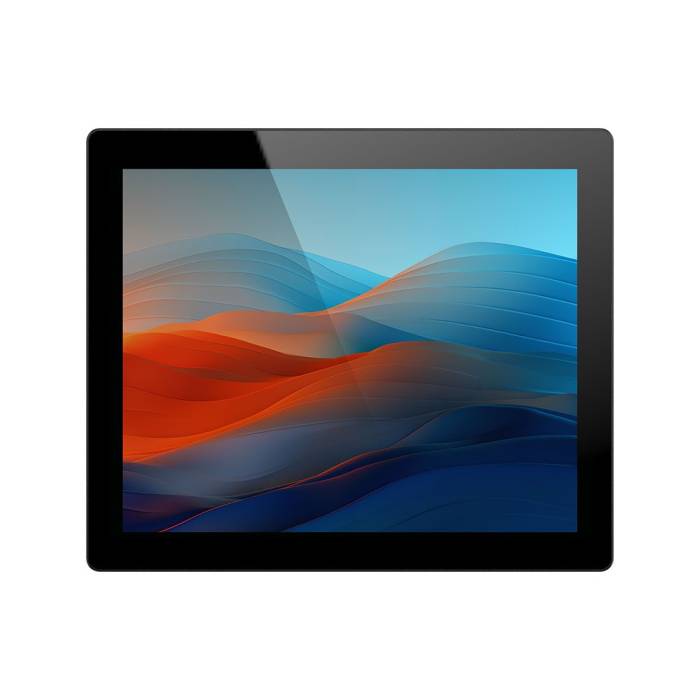

17’’ Industrial Monitor XIM-23170D1 12-24VDC power input

Quantity

This product is currently out of stock. It will be restocked shortly.

17’’ Industrial Monitor XIM-23170D1 12-24VDC power input

Name: 17’’ Industrial Monitor XIM-23170D1 12-24VDC power input
Availability: InStock
Author: Intronix Systems

Ref : XIM-23170D1

17’’ LED-backlit display with 5:4 ratio for industrial interfaces
Dual touchscreen options: Projected capacitive or 5-wire resistive
IP65-rated front panel for dust and water protection
Wide DC input range (12-24 V) for flexible integration
Multiple interfaces: VGA, DVI, HDMI/DP + USB for touch control

Alimentation 12-24VDC

IP65

Touch display

Wide temperature

17’’ Industrial Monitor XIM-23170D1 12-24VDC power input

Quantity

Request more information

This product is currently out of stock. It will be restocked shortly.

Technical datasheet

Overview

Overview 17’’ Industrial Monitor XIM-23170D1 12-24VDC power input

In industrial environments, electromagnetic interference (EMI) can be as challenging as dust or vibration. The XIM-23170D1 industrial monitor has been designed not only for physical robustness but also for electromagnetic reliability, ensuring flawless performance even in electrically noisy conditions.

Its 17’’ LED-backlit display, metal chassis, and IP65 front panel protection make it a strong candidate for demanding HMI, SCADA, and machine control applications.

Rugged build for harsh conditions

The all-metal chassis of the XIM-23170D1 monitor provides mechanical strength and acts as a natural EMI shield, minimizing electromagnetic vulnerabilities.

Enhanced visibility for operators

The 5:4 ratio and 1280x1024 resolution ensure crisp visuals, ideal for control panels and process monitoring.

Flexible mounting options

Compatible with VESA 100 and panel mounting, the monitor adapts to a variety of industrial cabinets and operator stations.

Universal power and connectivity

Supports 12-24 VDC input and features VGA, DVI, DP/HDMI for maximum system compatibility.

Touchscreen choices for every need

Choose P-CAP for multitouch gestures or resistive touch for glove operation in rugged conditions.

Ordering information

Ref.	Description
XIM-23170D1R	17" LCD Industrial Monitor with resistive touch, DC12-24V input, Phoenix 2P TB
XIM-23170D1C	17" LCD Industrial Monitor with P-CAP touch, DC12-24V input, Phoenix 2P TB

👉 Need a high-quality 17" industrial display? Contact us for a quote or personalized technical advice.

Specifications

Features 17’’ Industrial Monitor XIM-23170D1 12-24VDC power input

DISPLAY
Size	17-inch
Touch type	Projected capacitive multitouch 5-wire resistive touch (optional)
Transmittance	87% (Capacitive) 80% (Resistive)
Control interface	USB
Surface hardness	≥7H ≥3H
Resolution	1280 x 1024
Luminance	250 nits
Contrast ratio	1000: 1
View angles	85 (left), 85 (right), 80 (up), 80 (down)
LED Lifetime	30 000 hrs
Color	16.7M
I/O PORTS
USB	1x USB 2.0
Display	1x DP / HDMI (select one) 1x VGA 1x DVI
POWER
Button	Yes
DC Input	12 to 24 VDC
Power Connector	Button
Power Consumption	10W
Power Adaptor	AC-DC, 12V, 5A, 60W
ENVIRONMENT
Operating temperature	-10°C to 50°C (14°F to 122°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Relative humidity	10% to 95% @ 40°C (104°F), non-condensing
Vibration	5 to 500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
IP Rating	IP65 compliant (For Front Panel)
MECHANICAL
Dimensions (W x D x H mm)	393 x 330 x 45.3 mm (15.47 x 12.99 x 2.60 inches)
Weight (kg)	3.4 kg (12.35 lbs)
Mounting	Panel mount Wall mount bracket VESA 100
Material	Aluminum alloy panel All-metal chassis
CERTIFICATION
EMC	CE FCC
PACKING LIST
Packing	1x XIM-23170D1 10x Panel mounting buckles 1x Warranty card

Documents

Documentation 17’’ Industrial Monitor XIM-23170D1 12-24VDC power input

Datasheet 17’’ Industrial Monitor XIM-23170D1 12-24VDC power input

Datasheet industrial monitor 17-inch XIM-23170D1 Intronix Systems

Additional information

FAQ 17’’ Industrial Monitor XIM-23170D1 12-24VDC power input

Is the XIM-23170D1 certified for EMC compliance?

Yes, it meets both CE and FCC standards for electromagnetic compatibility.

Can it be installed near high-power electrical equipment?

Absolutely, it’s designed to withstand heavy EMI environments without performance loss.

What happens if the monitor is exposed to strong RF signals?

It remains fully functional thanks to internal shielding and filtering systems.

Request a quote or further information

Name

Company

Phone

Address

Zip code

City

Request

By submitting this form, I agree that the information collected may be processed by Intronix Systems for the purposes of the contact request and the ensuing commercial relationship.

Other industrial monitors large size

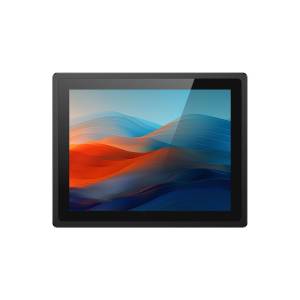

XIM-23150D1 Industrial Touchscreen Monitor 15” with 1024x768 resolution

Ref : XIM-23150D1

XIM-23150D1 Industrial Touchscreen Monitor 15” with IP65 Front Panel

15" LED-backlit LCD with capacitive or resistive touch options Resolution 1024 x 768 with 350 nit...

Learn More

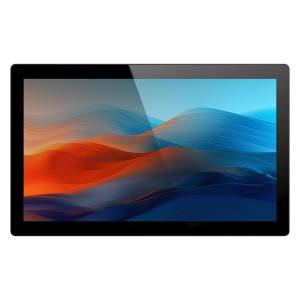

21.5" Industrial Monitor XIM-23215D1 1920x1080 resolution

Ref : XIM-23215D1

21.5" Industrial Monitor XIM-23215D1 Full HD Display

21.5” Full HD display (1920 x 1080) for crystal-clear image quality. Touchscreen options: Project...

Learn More

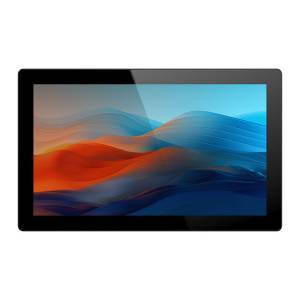

18.5’’ Industrial Monitor XIM-23185D1 with 300-nits brightness

Ref : XIM-23185D1

18.5’’ Industrial Monitor XIM-23185D1 all metal chassis and IP65

18.5’’ Full HD (1920x1080) for sharp image clarity Capacitive multitouch or 5-wire resistive touc...

Learn More

Focus: Electromagnetic Compatibility (EMC) and Industrial Safety

In an industrial environment, electronic equipment coexists with machines that generate electromagnetic interference (EMI), which can disrupt or damage unprotected systems.

The XIM-23170D1 industrial monitor is CE and FCC certified, attesting to its resistance to electromagnetic disturbances and its ability to not emit them beyond regulatory thresholds. This feature is crucial in environments such as:

Production lines with motors and frequency converters
Welding or plasma cutting installations
Sites with powerful electrical networks

Why is EMC critical?

Poor electromagnetic immunity can cause:

Intermittent malfunctions (frozen screen, commands not recognized)
Data loss in monitoring systems
Production stoppages due to an inoperative interface

Thanks to its design and certifications, the XIM-23170D1 monitor incorporates EMI filters and internal shielding, ensuring stable communication even in electrically noisy environments.

This electromagnetic robustness reduces the risk of unexpected maintenance and guarantees operational continuity, a decisive advantage for manufacturers
