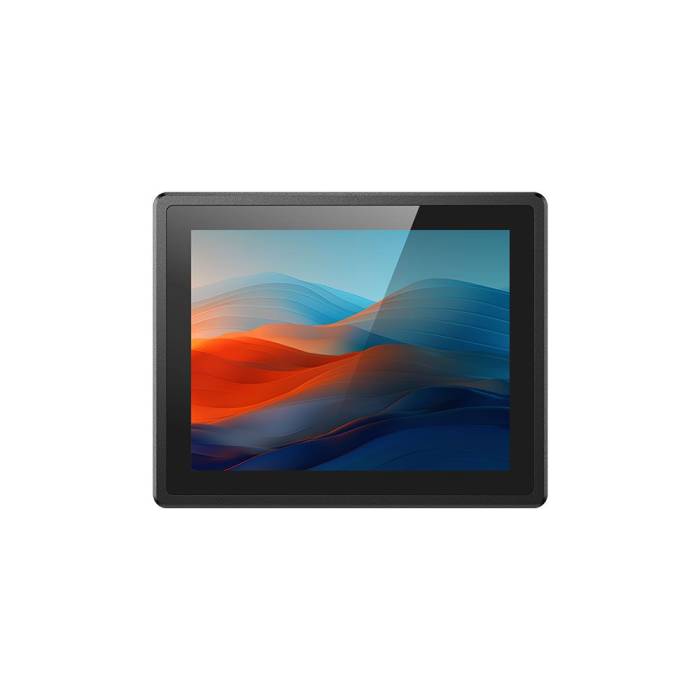

XIM-23121D1 Industrial Touchscreen Monitor 12.1” with IP65 Front Panel

The XIM-23121D1 industrial monitor is engineered for demanding industrial environments where durability, reliability, and user-friendly operation are essential. Equipped with a 12.1-inch LED-backlit display and available in both projected capacitive multi-touch and 5-wire resistive touch options, this monitor delivers superior interactivity and precision for various industrial applications.

Its IP65-rated front panel ensures complete protection against dust and water splashes, making it ideal for harsh conditions such as manufacturing plants, automation control rooms, and outdoor kiosks. With multiple input interfaces (VGA, DVI, HDMI/DP) and a DC 12–24V power range, the XIM-23121D1 guarantees easy integration into existing systems.

Furthermore, the VESA 100 mounting compatibility and ultra-thin all-metal design offer unmatched flexibility for installation. Built to perform in extreme environments, this monitor provides long lifespan components, wide viewing angles, and high brightness of 450 nits, ensuring optimal visibility even under challenging lighting conditions.

Designed for Industrial Excellence

Industrial environments require specialized equipment that can withstand continuous operation, temperature fluctuations, and exposure to dust and moisture. The XIM-23121D1 industrial monitor addresses these challenges with a robust construction and IP65-rated front panel, providing resistance against dust ingress and water splashes. This makes it suitable for applications in factories, warehouses, transportation hubs, and medical facilities, where reliability is non-negotiable.

Unlike consumer-grade displays, the XIM-23121D1 is built to operate in temperatures ranging from -10°C to 50°C, ensuring consistent performance in both refrigerated warehouses and high-heat industrial environments.

Display Technology and Visual Performance

The 12.1-inch LED-backlit LCD delivers crisp and vibrant images, thanks to its 1024x768 resolution and 450 nits brightness. The 1000:1 contrast ratio ensures deep blacks and bright whites, enhancing visibility even in high-glare environments. The wide viewing angles (80° in all directions) allow operators to clearly view information from different positions, reducing errors during critical operations. Additionally, the display supports 16.7 million colors, providing a realistic and accurate representation of graphics and process data.

Touchscreen Flexibility: Capacitive or Resistive

The XIM-23121D1 offers two touchscreen technologies:

• Projected Capacitive Multi-Touch (P-CAP): Supports multi-finger gestures for intuitive navigation, ideal for applications requiring zoom, scroll, and swipe functionalities.
• 5-Wire Resistive Touch (optional): Designed for environments where operators wear gloves or use a stylus, ensuring reliability under demanding conditions.

Both options feature a high surface hardness (≥7H for capacitive, ≥3H for resistive), protecting the screen from scratches and abrasions in industrial settings.

Connectivity and Integration

The XIM-23121D1 supports a wide range of interfaces, including:

• 1x VGA
• 1x DVI
• 1x DP/HDMI (selectable)
• 1x USB 2.0 (for touch control)

This variety of ports ensures compatibility with modern and legacy systems, making it ideal for retrofitting existing setups without costly infrastructure upgrades.

Rugged Construction for Harsh Environments

The monitor is built with an aluminum alloy front panel and an all-metal chassis, delivering exceptional durability and mechanical strength. This robust design, combined with VESA 100 and panel mounting options, offers installation flexibility for control panels, walls, and custom enclosures.

Its vibration resistance (2.16 Grms across X, Y, Z axes) ensures stable operation in environments subject to shocks and vibrations, such as transportation or heavy machinery operations.

Power Efficiency and Wide Voltage Support

With a power consumption of only 10W, the XIM-23121D1 is an energy-efficient solution, reducing operational costs while maintaining reliable performance. It accepts DC inputs from 12V to 24V, making it adaptable to various industrial power infrastructures.
