XEB-223608D1/2PE modular industrial computer with 2 expansion slots: 1xPCIex16 and 1xPCI

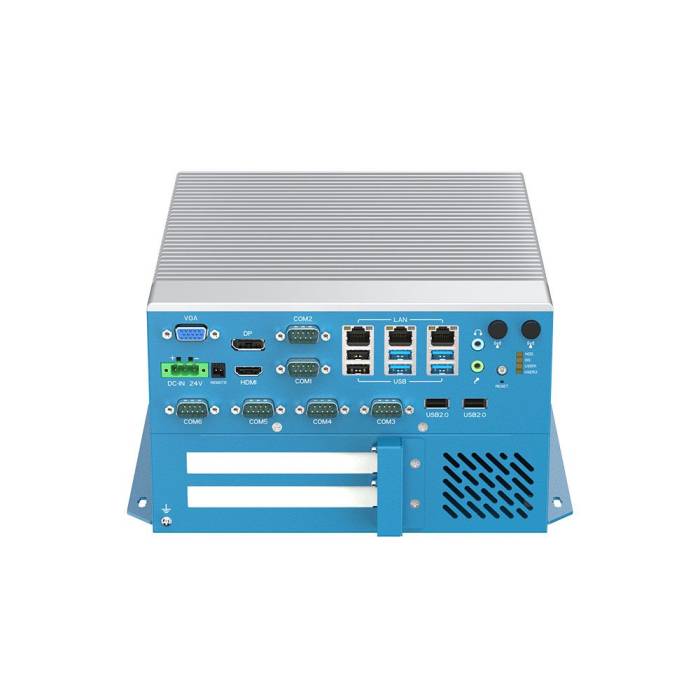

We are pleased to present the Intronix XEB-223608D1/2PE modular fanless PC with 2 expansion slots.

This compact modular industrial PC offers an optimal combination of power, flexibility and robustness for automation, embedded AI and industrial processing environments.  Designed around the Intel® Comet Lake-S platform, it guarantees high performance and 24/7 reliability in a small form factor.

I/O interfaces and connectivity

The PC stands out for its comprehensive industrial connectivity:

• USB: 4x USB 3.0, 4x USB 2.0
• Serial ports: 6x COM, including 3 configurable RS-232/485
• Network: 3 Ethernet ports (1x Intel® I219-LM + 2x Intel® I210-AT) for network redundancy and machine control
• Display: 1x DisplayPort, 1x HDMI, 1x VGA for multi-screen configurations
• 1x SIM slot and 6x SMA connectors for external antennas

Expansion and modularity

This model includes:

• 1x PCI, 1x PCIe x16 for industrial expansion cards
• 2x M.2 M-Key (2280) for storage or AI acceleration
• 1x M.2 E-Key (2230) for Wi-Fi/Bluetooth modules
• 1x M.2 B-Key (3052) for cellular communication or GNSS

Environment

Made of aluminium alloy, the chassis provides excellent heat dissipation and increased resistance to shock and vibration. Compact, with dimensions of 220 × 256 × 136 mm and a weight of 4.6 kg, it can be easily wall-mounted.

It is designed to operate in demanding environments:

• Operating temperature: -10°C to +50°C (with air flow of 0.7 m/s)
• Storage temperature: -40°C to +80°C
• Relative humidity: 10% to 95% non-condensing

Compatibility and compliance

Compatible with Windows 10, Windows 11 and Ubuntu Linux, it integrates easily into various software environments. CE and FCC Class A certified, it meets industry standards for electromagnetic compatibility and safety.
