Modular Fanless Box PC XEB-226408D1/2PE Core™ i3 i5 i7 i9 Celeron Pentium OS Windows 11 or 10

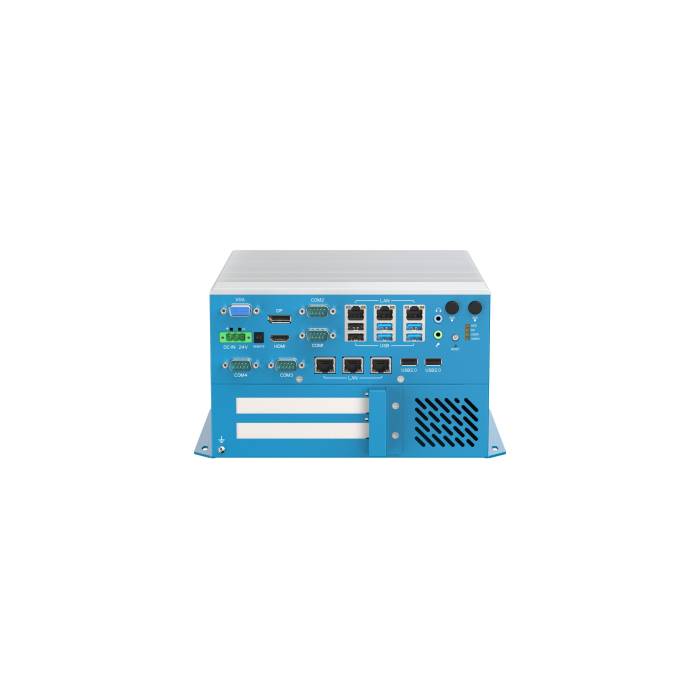

We are pleased to present the XEB-226408D1-2PE modular industrial PC box with 2 expansion slots.

Designed to meet the demanding requirements of industrial environments, this fanless PC offers advanced computing power, modularity and connectivity. It supports Intel® Comet Lake-S processors (i3, i5, i7, i9) up to 65 W TDP, offers a robust architecture suitable for applications requiring intensive data processing, continuous operation and extensive compatibility with industrial standards.

Equipped with the Intel® H420E chipset and two DDR4 SO-DIMM slots supporting up to 64 GB of memory, this system guarantees perfect fluidity for control, supervision and visual processing applications. Its fanless design reduces the risk of mechanical failure even in environments subject to dust or vibration.

With its PCI and PCIe x16 expansion slots, it offers superior flexibility, allowing the integration of acquisition cards, industrial I/O, GPU modules or specific communication solutions. This adaptability makes it an ideal solution for integrators and equipment manufacturers looking for a robust, scalable and customisable system.

Its extensive connectivity further enhances its versatility: up to six Intel® Ethernet ports (including five I210-AT ports for deterministic industrial networks), eight USB ports (3.0 and 2.0), four configurable serial ports (RS-232/485), and three independent video outputs (HDMI, DP, VGA). It also has six SMA antenna connectors and several M.2 slots (M-Key, E-Key, B-Key) for Wi-Fi 6, Bluetooth, 4G/5G or GNSS geolocation, giving it exceptional communication capabilities.

This industrial PC is compatible with Windows 10/11 and Ubuntu Linux, and can be easily integrated into automation, line control, video surveillance, intelligent transport or embedded systems applications. Its brushed aluminium casing, wall mounting and thermal resistance (-10°C to +50°C) make it ideal for harsh environments.

Compared to other competing solutions, this model stands out thanks to its combination of a compact fanless design, PCI/PCI expansion slots and six-port Ethernet network connectivity. It thus offers integrators a high-performance all-in-one platform that is ready for the most critical industrial applications.

Ordering information

💡 If you have any questions, please do not hesitate to fill out our contact form. Our experts are available to respond to you as soon as possible.
