Technical datasheet
Overview

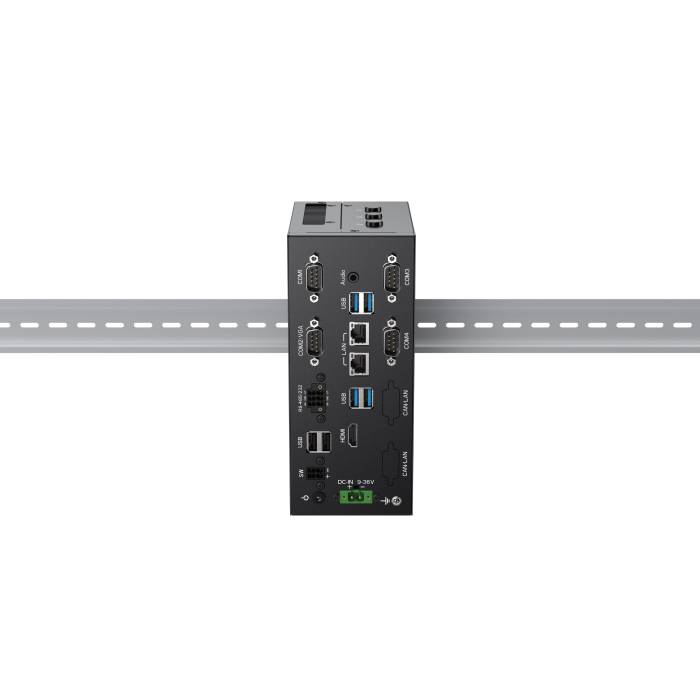

-Overview Fanless DIN Rail PC XDB-242606D1 6x COM 6x USB 2x LAN 1x HDMI 9-36VDC
We are pleased to present our XDB-242606D1 Fanless Rail-DIN PC.
The XDB-242606D1 is a fanless industrial DIN rail PC designed for harsh automation, IIoT and edge computing environments. With its robust aluminium alloy chassis and fanless design, this rugged computer offers optimal robustness. Its compatibility with a wide range of Intel® Celeron® and Core™ processors (10th to 12th generation i3/i5/i7), its 9 to 36 VDC power supply (with AT/ATX modes) and its multiple communication interfaces make it a powerful and scalable solution for Industry 4.0.
It offers a particularly rich range of native connectivity: 6 COM ports (including 2x RS-232/485), 2 Intel® I210AT Gigabit LAN ports, 6 USB ports (including 4x USB 3.0 and 2x USB 2.0) and 1 HDMI output. A CAN 2.0b bus is available as an option for industrial or transport environments.
Its compact (176 × 120 × 76 mm), fanless aluminium alloy case ensures efficient passive heat dissipation in temperature ranges from -10°C to +60°C. CE and FCC Class A certified, it guarantees compliance with international industrial standards.
This XDB-242606D1 DIN-Rail PC can be integrated into many sectors:
- Industrial automation and machine control
- IIoT gateways and edge computing
- Intelligent transport and rail systems
- Energy networks and smart grids
- Factory data acquisition and monitoring
Ordering information
|
Ref. |
Description |
|
XDB-242606D1J6412 |
Celeron J6412/2LAN/6COM/6USB/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242606D1I310U |
Core i3-10110U/2LAN/6COM/6USB/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242606D1I311G |
Core i3-1115G4/2LAN/6COM/6USB/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242606D1I312U |
Core i3-1215U/2LAN/6COM/6USB/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242606D1I510U |
Core i5-10310U/2LAN/6COM/6USB/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242606D1I511G |
Core i5-1135G7/2LAN/6COM/6USB/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242606D1I512U |
Core i5-1235U/2LAN/6COM/6USB/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242606D1I711G |
Core i7-1195G7/2LAN/6COM/6USB/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242606D1I712U |
Core i7-1255U/2LAN//6COM/6USB/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
👉 Are you looking for a compact, robust and scalable solution for your industrial systems?
Contact us today for a personalised quote or to speak with our technical experts.
