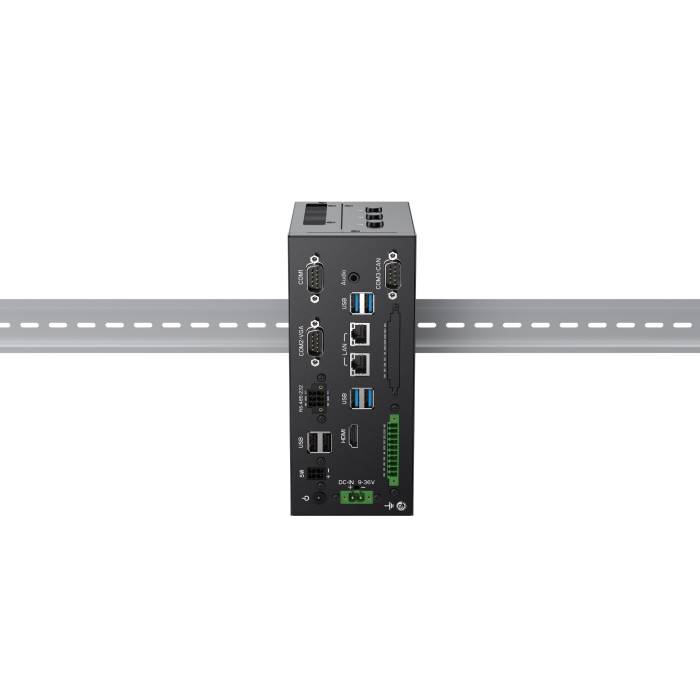

-Overview Fanless DIN Rail PC XDB-242506D1 Celeron® J6142 or Core™ i3/i5/i7 5xCOM 2xLAN 6xUSB
We are pleased to present our XDB-242506D1 industrial fanless DIN-rail PC.
The XDB-242506D1 industrial DIN-rail PC combines power, robustness and modularity for harsh industrial environments. Designed around 10th to 12th generation Intel® Elkhart Lake Celeron® J6412 or Core™ i3/i5/i7 processors, it offers a wide range of performance options to meet the needs of both light applications and critical systems requiring advanced computing power.
With its compact DIN-Rail format and aluminium alloy chassis, it is easy to install (particularly for maintenance) and supports extended operating temperatures (-10°C to +60°C).
The XDB-242506D1 Fanless PC stands out for its connectivity: 5 communication ports, 2 Gigabit LAN ports, 6 USB ports, 1 HDMI output, and 8 opto-isolated DIO inputs/outputs (expandable to 16). In terms of storage, it supports a 2.5" SATA drive and an NVMe M.2 2280 SSD. Its Mini PCIe and M.2 E-Key slots allow you to add Wi-Fi, Bluetooth, 4G/5G or GPS modules, ensuring smooth communication tailored to each project.
Compatible with Windows 10/11 and Linux (Ubuntu), it offers an open and stable platform for integrating business software and customised solutions. With its CE and FCC Class A certification, the XDB-242506D1 is the ideal choice for automation, process control, IIoT or critical infrastructure.
Ordering information
|
Ref. |
Description |
|
XDB-242506D1J6412 |
J6412/2LAN/5COM/6USB/8DIO/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242506D1I310U |
I3-10110U/2LAN/5COM/6USB/8DIO/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242506D1I311G |
I3-1115G4/2LAN/5COM/6USB/8DIO/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242506D1I312U |
I3-1215U/2LAN/5COM/6USB/8DIO/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242506D1I510U |
I5-10310U/2LAN/5COM/6USB/8DIO/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242506D1I511G |
I5-1135G7/2LAN/5COM/6USB/8DIO/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242506D1I512U |
I5-1235U/2LAN/5COM/6USB/8DIO/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242506D1I711G |
I7-1195G7/2LAN/5COM/6USB/8DIO/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
|
XDB-242506D1I712U |
I7-1255U/2LAN/5COM/6USB/8DIO/HDMI/9~36V DC-IN, Phoenix 2P 5.0 |
👉 Contact us now to find out how the XDB-242506D1 Rail-DIN PC can optimise your industrial applications.
