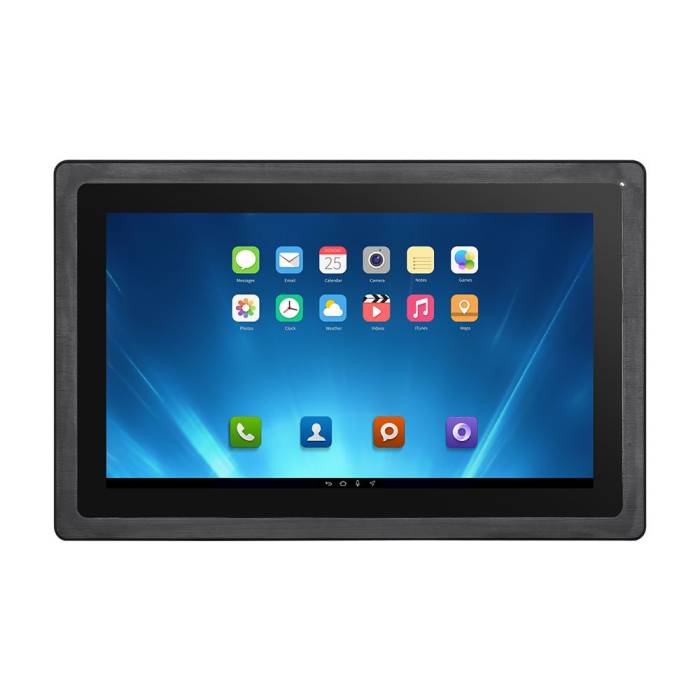

15.6" outdoor industrial display XBM-23156T1 with VESA mount Wall mount and Panel mounting

We are pleased to present the Intronix Systems XBM-23156T1 15.6" 1000 nits industrial monitor.

This 15.6-inch industrial monitor has been designed to offer clear readability in all conditions, including brightly lit environments. Its P-CAP touchscreen, combined with optical bonding, ensures excellent pointing accuracy, no stray reflections and high resistance to vibrations and shocks.

Light transmission of over 88% preserves image clarity, while Full HD 1920×1080 resolution allows you to view HMI interfaces, production diagrams and dashboards in detail. With a luminance of 1000 nits coupled with an automatic brightness sensor, the screen adjusts its intensity in real time to maintain constant visibility.

The connectivity covers all integration needs: DVI, HDMI and VGA inputs to adapt to both recent industrial PCs and older systems, a touch interface via an RJ45 port configured as USB (RJ45-USB cable supplied) and an audio I/O port for managing audible alerts or multimedia functions. This combination simplifies integration into a variety of architectures without the need for specific adaptations.

The power supply supports 12 to 36 VDC via a 2-pin Phoenix terminal block, with the option of a 5.5×2.1 mm threaded connector depending on the configuration. A 24 V / 2.5 A AC adapter is provided to ensure a stable power supply. The operating temperature range of -20°C to 70°C and storage temperature of up to 80°C allow for use in thermally demanding environments. The aluminium alloy chassis reinforces the product's robustness. There are numerous mounting options: panel, wall, flush, VESA, suspended, desktop or foldable mounting, facilitating integration into any type of machine or enclosure.

This monitor is perfect for use in industrial automation, production lines, SCADA supervision, OEM, logistics, energy systems and equipment requiring a bright and durable display.

Ordering information

💡 To receive technical advice, a quotation or an integration study, simply complete the form below.
