XNB-252007N1 Industrial Fanless Mini PC Intel Core i5 12th Gen. 7xUSB 2x LAN 3xHDMI 1xDP

We are pleased to present the Intronix Systems XNB-252007N1 Fanless Mini PC.

This XNB-211003N1 computer is a compact mini PC designed to offer an excellent balance between performance and compact size. Equipped with 12th generation Intel® Core™ i5 processors (i5-1240P or i5-1235U), it offers up to 12 cores and 16 threads, ensuring good responsiveness for office applications as well as technical or embedded environments.

With two DDR4 SODIMM slots, it can accommodate up to 64 GB of RAM, ensuring efficient multitasking and intensive workloads. On the storage side, the system features two NVMe- and SATA-compatible M.2 2280 connectors, offering both speed and flexibility for drive configurations.

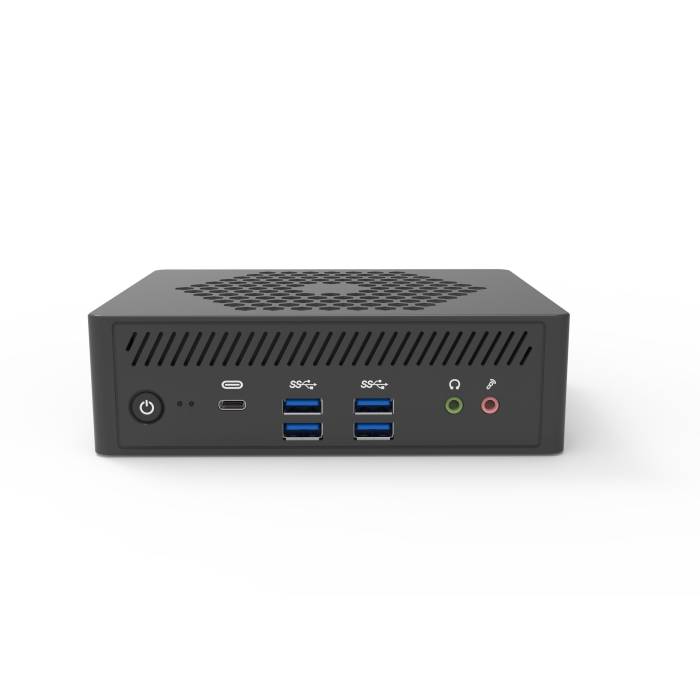

In terms of connectivity, the mini PC has a comprehensive interface: seven USB ports (including one USB Type-C 3.0), two 2.5 Gigabit Ethernet ports (Intel I225-V/I226-V) for high-speed networking, and four video outputs (three HDMI 2.0b and one DisplayPort 1.4a) capable of handling multiple 4K displays simultaneously. Audio is also supported via a microphone input and line output.

Wireless connectivity is provided by an M.2 2230 E key port compatible with Wi-Fi ac/ax (6/6E) and a Mini PCIe slot dedicated to a 4G LTE module. The device runs on Windows 10 or Windows 11 and is powered by 12 VDC, making it suitable for many industrial or office integrations.

Compact (160 × 126 × 47 mm) and lightweight (0.75 kg), the XNB-211003N1 can be mounted on a desk or VESA. Its robust plastic casing provides a good compromise between strength and design, while its operating range (-10°C to +40°C) allows for reliable use in a variety of environments. CE-compliant, it is a versatile and powerful solution for projects requiring a compact, quiet and efficient computer.

Ordering information

👉 If you have any questions or would like a quote, please fill in our contact form below. Our teams are at your disposal and will respond as soon as possible.
