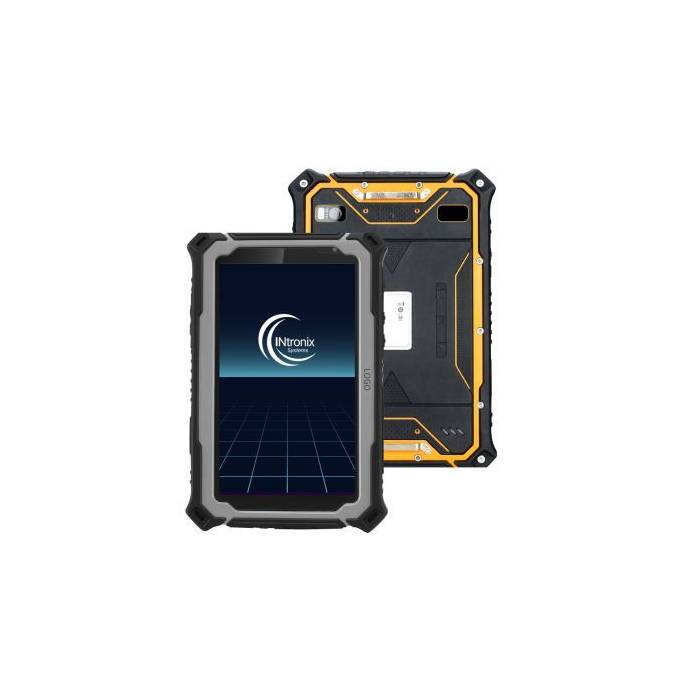

7-inch rugged PDA with Android IP67-rating and ultra-bright display for fieldwork

The XHT-24A0702S1 is a 7-inch rugged PDA designed for field environments where readability, battery life and durability are key criteria. Its high-brightness Full HD display, comprehensive connectivity and IP67 certification make it an ideal solution for intensive use in logistics, industry, inspection, maintenance and outdoor operations.

A 7-inch rugged PDA designed for the field

The XHT-24A0702S1 meets the needs of professionals working on the move in environments exposed to dust, humidity, shocks and temperature fluctuations. Its 7-inch format provides a comfortable display area for business applications, data viewing and on-site data entry.

Its 1920 x 1080 IPS/AFFS HD panel and 2200-nit brightness ensure excellent readability, even outdoors. The screen supports capacitive touch with glove, spray and active capacitive stylus input.

Performance tailored to professional applications

This rugged PDA is powered by a MediaTek MT6771 processor with a 2.0 GHz octa-core ARM Cortex-A73 architecture, combined with 8 GB of RAM and 128 GB of storage. It also supports a Micro SD card of up to 1 TB to expand capacity according to business needs.

The XHT-24A0702S1 runs on Android, with the version varying depending on the chosen configuration.

Comprehensive connectivity for field use

To ensure operational continuity, this model supports 4G, dual-band 2.4 GHz/5.0 GHz Wi-Fi, Bluetooth 5.0 Low Energy, as well as GPS, GLONASS, BeiDou, AGPS and SBAS positioning services.

It also features useful interfaces for business integration: USB Type-C OTG, Type-C charging port, 3.5 mm headphone jack, SIM slot and Micro SD card reader.

A scalable platform to suit your needs

The XHT-24A0702S1 rugged PDA can integrate various optional modules depending on the application: NFC, high-precision GNSS modules, UHF, LF RFID, HF RFID and a UART port module. This modularity allows the configuration to be tailored for identification, traceability, positioning or specific integration scenarios.

Robustness, battery life and service continuity

Designed for harsh environments, the XHT-24A0702S1 is IP67-certified and MIL-STD-810G compliant. It withstands drops from up to 1.5 metres, can withstand a 2-tonne pressure test and operates between -20°C and 55°C.

Its 10,000 mAh battery enables it to keep up with intensive working days in the field. With dimensions of 202 x 131 x 21 mm and a weight of 700 g, it offers a robust design tailored for professional use.

Key features

• 7-inch IPS/AFFS HD display (1920 x 1080)
• Very high brightness (2200 nits)
• 2.0 GHz octa-core ARM Cortex-A73 processor
• 8 GB RAM and 128 GB storage
• Micro SD expansion up to 1 TB
• 4G, Wi-Fi, Bluetooth 5.0 and GNSS connectivity
• 10,000 mAh battery
• IP67 and MIL-STD-810G certification
• Optional NFC and RFID modules

Ordering information

Do you need a 7-inch rugged handheld computer for your field teams?

Request a personalised quote for the XHT-24A0702S1 rugged Android handheld computer. Our teams will help you choose the configuration best suited to your business requirements, field operations and integration needs.

👉 Contact us now to receive a quick, tailored quote.
