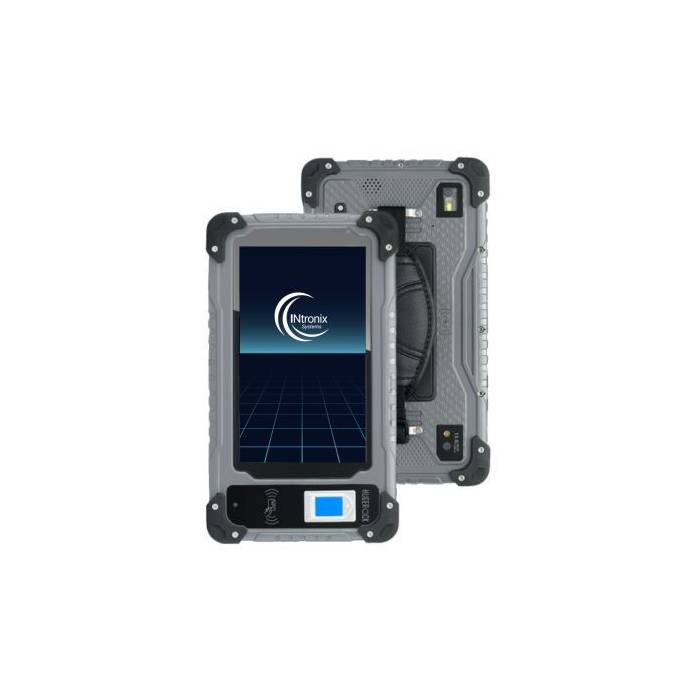

7-inch rugged industrial Android PDA XHT-25A0701S1 for logistics and industry

The XHT-25A0701S1 is a 7-inch rugged industrial PDA designed for professionals who require a mobile device that is robust, readable outdoors and capable of handling intensive business use. Its 7-inch format provides a more comfortable display area than a standard compact PDA, whilst retaining the mobility required for field, logistics and industrial operations. The PDA features a 1280 x 720 HD IPS/AFFS screen with a brightness of 1000 nits, designed for effective readability in bright environments.

A rugged mobile device designed for demanding professional use

The XHT-25A0701S1 is based on a MediaTek MT6771 platform with a 2.0 GHz octa-core ARM Cortex-A73 processor, combined with 8 GB of RAM and 128 GB of storage. A microSD expansion slot supporting up to 1 TB is also included, enhancing its suitability for business applications, local data management, viewing technical content or the most demanding field workflows.

Running Android 9/10/11/13 depending on the configuration, this model is designed for businesses seeking a reliable device for traceability, mobile data entry, identification, job tracking, inventory management or operational management in challenging environments. Its 7-inch rugged tablet form factor makes it better suited to richer business interfaces, field data access and applications requiring more screen space.

7-inch high-brightness screen for better readability in the field

One of the key strengths of this model lies in its 7-inch IPS/AFFS HD display with 1000 nits of brightness, a level suitable for outdoor areas, well-lit warehouses, loading bays, open workshops or environments where glare significantly impairs the user experience with standard terminals.

The touchscreen supports glove touch, spray touch and active capacitive stylus, which improves usability in industrial settings, maintenance, logistics or technical support when operators are working with gloves or in less favourable conditions.

Comprehensive connectivity for mobile operations

The XHT-25A0701S1 incorporates all the essential communication features expected of a modern professional device: 4G, dual-band 2.4 GHz/5 GHz Wi-Fi, Bluetooth 5.0 Low Energy and GNSS with GPS, GLONASS, BeiDou, AGPS and SBAS. This technical foundation makes it ideal for mobile deployments requiring data synchronisation, geolocation and continuous connectivity in the field.

In terms of interfaces, it features 1 USB Type-A (Host) port, 1 USB Type-C port, a SIM slot, a microSD slot, a 3.5 mm headphone jack, as well as charging via Type-C, Pogo PIN and DC 5V direct battery charging.

A 7-inch PDA configurable for traceability, identification and data capture

This terminal can be adapted to various business scenarios thanks to a range of optional modules. The document mentions the availability of NFC, UHF RFID, LF RFID, HF RFID, a 1D/2D barcode module and a G2010 fingerprint module. This flexibility allows the configuration to be tailored to requirements for traceability, identification, access control, asset management, label scanning or equipment tracking.

The device also features a 13 MP main camera with autofocus and LED flash, as well as a 5 MP front-facing camera, expanding its uses to include documentation, visual inspection, field reporting and certain business applications that incorporate photography.

10,000 mAh battery for extended operating hours

The XHT-25A0701S1 rugged PDA features a 10,000 mAh battery, a key advantage for long working days, mobile teams, multi-site operations or situations where battery life directly impacts productivity. For businesses seeking to minimise downtime and ensure reliable operation over extended periods, this capacity offers a genuine operational advantage.

A rugged design built for real-world environments

The device features a robust build, reinforced glass, an ‘aerospace-grade’ titanium chassis and compliance with MIL-STD-810G / Method 516.6 / Procedure IV. The PDA also withstands drops from up to 1.5 metres, a 2-tonne pressure test, an operating temperature range of -20 °C to +55 °C, and a storage temperature range of -40 °C to +80 °C.

Measuring 237 x 137 x 29 mm and weighing 780 g, this 7-inch rugged PDA is positioned as a reinforced mobile solution for applications where durability, stability and readability take precedence over extreme compactness. It is designed to be a more versatile, durable and user-friendly field device for a wide range of professional applications.

Why choose this 7-inch rugged PDA

The XHT-25A0701S1 mobile terminal is the ideal solution for businesses seeking:

• A large-format rugged Android terminal: Its 7-inch screen offers improved readability and interaction for business applications, forms, light monitoring interfaces or viewing field data.
• A mobile PDA for logistics, industry and field services: Thanks to its 4G, Wi-Fi, Bluetooth and GNSS connectivity, it integrates easily into inventory, control, traceability, delivery, field service or maintenance workflows.
• A solution configurable to business needs: NFC, RFID, 1D/2D barcodes, fingerprint recognition and other optional modules allow the platform to be adapted to a wide range of environments and uses.
• Hardware built to last: A 10,000 mAh battery, ruggedised construction, wide temperature range and architecture designed for intensive field use make it a solid foundation for a professional deployment project.

Ordering information

Are you looking for a reliable, 7-inch rugged PDA that is readable in direct sunlight and can be customised for your logistics, industrial or field operations?
👉Contact us to determine the right configuration for the XHT-25A0701S1 PDA, confirm which modules are best suited to your business, and receive a quick quote for your project.
