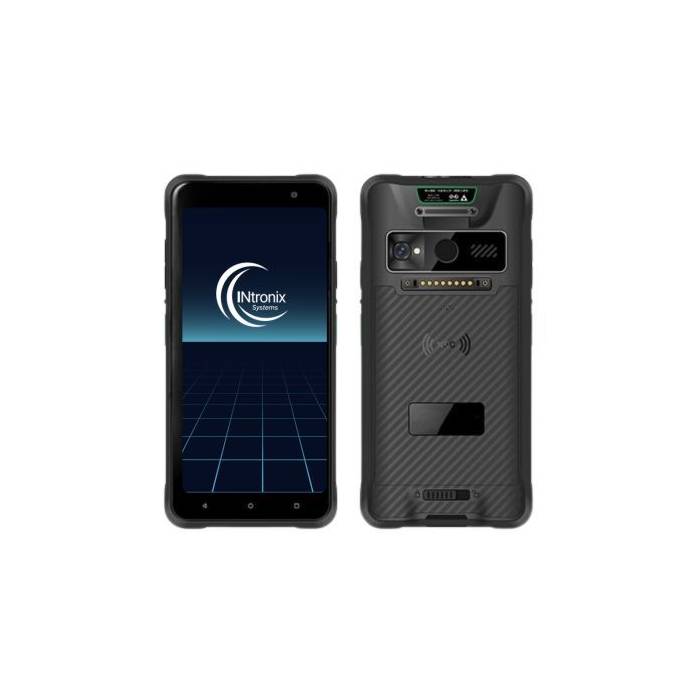

5.7" Rugged Android 13 PDA XHT-24A0501G1: IP65-rated mobile device for data collection

The XHT-24A0501G1 is a rugged Android 13 PDA designed for industrial and professional users who need to collect, view and transmit data directly in the field. With its 5.7-inch IPS display, 4G, Wi-Fi, Bluetooth, GNSS and NFC connectivity, removable battery and IP65-certified casing, it fits seamlessly into industrial, logistics and technical environments, even under demanding conditions.

A rugged mobile terminal for industrial environments

Designed for intensive professional use, the XHT-24A0501G1 rugged PDA offers a compact and robust design, suitable for mobile operators, maintenance technicians, logistics teams, inventory agents or inspection staff. Its 5.7-inch IPS display with a resolution of 720 x 1440 ensures comfortable viewing of business data, whilst the capacitive multi-touch screen facilitates everyday use. Thanks to its Android 13 operating system with GMS, this rugged PDA allows the deployment of professional and business applications, whilst retaining a familiar interface.

Performance and comprehensive connectivity

The XHT-24A0501G1 industrial PDA features a MediaTek MT6762 Octa-Core 2.0 GHz processor, combined with 4 GB of RAM and 64 GB of storage. This configuration enables, in particular: data retrieval, field data entry, inventory management, job tracking and real-time data transmission.

In terms of connectivity, it supports:

• 4G LTE
• Dual-band Wi-Fi 2.4/5 GHz 802.11 a/b/g/n/ac
• Bluetooth 5.0
• GNSS: GPS, Beidou, Glonass, AGPS
• NFC 13.56 MHz

This connectivity enables teams to remain operational on-site, in the warehouse, whilst on the move or during external assignments.

Optional 2D scanner for traceability and inventory

For barcode scanning requirements, the XHT-24A0501G1 can be fitted with an optional Zebra SE-4710 or Newland CM60 2D scanner. This option makes it particularly suitable for traceability operations, stock control, order picking, equipment maintenance or the identification of industrial assets.

The device also features a 5 MP front camera and a 13 MP rear camera with flash, useful for documenting an operation, capturing evidence in the field or enhancing a report directly from the device.

Designed to withstand the rigours of the field

With its IP65 rating, the XHT-24A0501G1 industrial PDA is protected against dust and water splashes. It is also drop-resistant from heights of up to 1.2 metres, making it the perfect solution for environments where mobile devices are subject to repeated handling.

Its operating temperature range of -10°C to +50°C allows for use in a wide range of professional settings: warehouses, workshops, industrial sites, technical areas or outdoor operations.

The XHT-24A0501G1 rugged PDA is also equipped with a removable 4000 mAh battery. This design facilitates continuous use throughout the day and allows the battery to be replaced at any time, without restriction.

Professional applications

The XHT-24A0501G1 Android 13 rugged PDA meets the needs of businesses seeking a reliable mobile device for:

• logistics and warehouse management;
• inventory and traceability;
• industrial maintenance;
• field operations;
• technical inspections;
• mobile data collection and transmission.

Why choose the XHT-24A0501G1 rugged PDA?

The XHT-24A0501G1 offers an excellent balance between mobility, ruggedness and connectivity. Its compact design, 5.7-inch screen, IP65 certification, comprehensive connectivity and optional 2D scanner make it an effective solution for digitising field operations without complicating day-to-day use for teams.

Whether you’re looking to equip technicians, logistics operators or inspection teams, this rugged Android PDA delivers greater reliability, faster data entry and operational continuity.

Ordering Information

Request a quote for the XHT-24A0501G1 rugged PDA

Are you looking to integrate a reliable, compact Android 13 rugged PDA? Contact us using the form below to receive technical advice, confirm the configuration best suited to your application, and receive a bespoke quote for the XHT-24A0501G1.
