21.5" XIP-21215D1 Industrial Panel PC with Mini PCIe for Wi-Fi, Bluetooth, and 4G networking

Quantity

This product is currently out of stock. It will be restocked shortly.

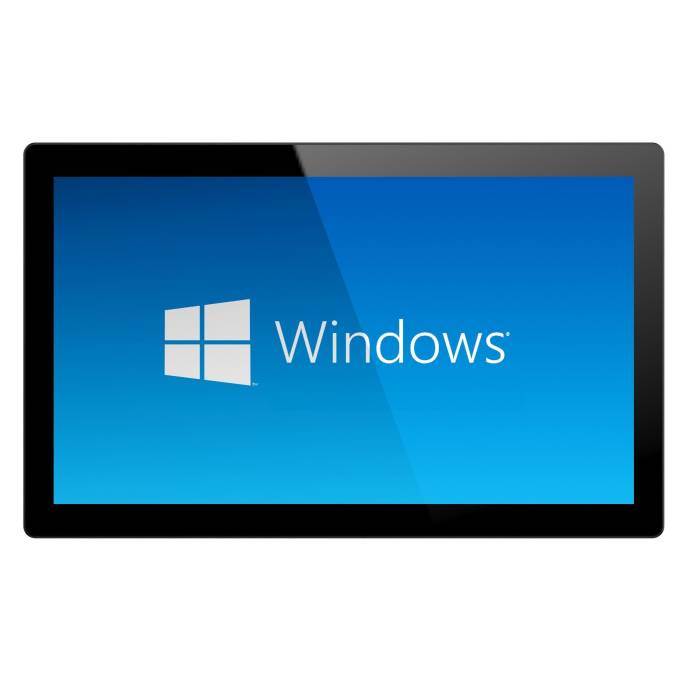

21.5-inch Industrial Panel PC XIP-21215D1 Intronix Systems

21.5" XIP-21215D1 Industrial Panel PC with Mini PCIe for Wi-Fi, Bluetooth, and 4G networking

Name: 21.5" XIP-21215D1 Industrial Panel PC with Mini PCIe for Wi-Fi, Bluetooth, and 4G networking
Availability: InStock
Author: Intronix Systems

Ref : XIP-21215D1

21.5" LED-backlit LCD with capacitive or resistive touch screen
Rugged aluminum enclosure and fanless design
Intel® Core™ U-Series / Celeron® processor
2x COM, 4x USB, 2x LAN, 1x VGA, 1x HDMI
Supports Wi-Fi, 4G
VESA 100 mount and panel mount compatibility
IP65 compliant front panel

12VDC power input

Fanless

Touch display

Windows 10/11

Wide temperature

21.5" XIP-21215D1 Industrial Panel PC with Mini PCIe for Wi-Fi, Bluetooth, and 4G networking

Quantity

Request more information

This product is currently out of stock. It will be restocked shortly.

Technical datasheet

Overview

Overview 21.5" XIP-21215D1 Industrial Panel PC with Mini PCIe for Wi-Fi, Bluetooth, and 4G networking

The XIP-21215D1 is a 21.5-inch Panel PC designed for industrial environments, offering both robustness and performance. Its Full HD (1920 x 1080) screen offers a choice between projected capacitive or 5-wire resistive touch, with high transmittance of 87% for capacitive and 80% for resistive. The resistant surface reaches ≥7H for capacitive and ≥3H for resistive, ensuring robustness and precision in touch interactions. With a contrast ratio of 1000:1, a viewing angle of 89° in all directions and a luminance of 250 nits, the display remains clear and legible even in varied conditions.

In terms of performance, this Panel PC is available with Intel® Celeron® J6412, Core™ i5-10210U or Core™ i7-10710U processors and supports up to 32 GB of DDR4 memory depending on the configuration. Flexible storage includes a 2.5" SATA slot for HDD/SSD and a full Mini PCIe for mSATA. The system is compatible with Windows 10 and 11, allowing for easy integration into existing infrastructures.

The XIP-21215D1 Panel PC has extensive ports: USB 2.0/3.0, COM RS-232/422/485, dual GbE LAN, HDMI and VGA. Wireless options include Wi-Fi, 4G via SIM and Bluetooth thanks to the Mini PCIe extension. Audio is supported with microphone, line output and optional speaker.

Designed for industrial use, this Panel PC features a robust aluminium chassis, cabinet door or VESA 100 mounting, and IP65 protection on the front panel. It operates from -10°C to 50°C and is vibration-resistant. Power consumption is optimised between 23W and 29W depending on the configuration.

Ordering information

Ref.	Description
XIP-21215D1J6412R	21.5" LCD, Intel Celeron J6412, Resistive, DC 12V input, Phoenix 2P TB
XIP-21215D1J6412C	21.5" LCD, Intel Celeron J6412, P-Cap, DC 12V input, Phoenix 2P TB
XIP-21215D1I510UR	21.5" LCD, Intel Comet Lake Core-i5-10210U, Resistive, DC 12V input, Phoenix 2P TB
XIP-21215D1I510UC	21.5" LCD, Intel Comet Lake Core-i5-10210U, P-Cap, DC 12V input, Phoenix 2P TB
XIP-21215D1I710UR	21.5" LCD, Intel Comet Lake Core-i7-10710U, Resistive, DC 12V input, Phoenix 2P TB
XIP-21215D1I710UC	21.5" LCD, Intel Comet Lake Core-i7-10710U, P-Cap, DC 12V input, Phoenix 2P TB

💡 Contact us now using the form below.

Specifications

Features 21.5" XIP-21215D1 Industrial Panel PC with Mini PCIe for Wi-Fi, Bluetooth, and 4G networking

DISPLAY
Size	21.5-inch
Touch type	Projected capacitive multitouch 5-wire resistive touch
Transmittance	87% (capacitive) 80% (resistive)
Control Interface	USB
Surface Hardness	≥7H ≥3H
Resolution	1920 x 1080
Luminance	250 nits
Contrast ratio	1000:1
View angles	89 (left), 89 (right), 89 (up), 89 (down)
LED Lifetime	40 000 hrs
Color	16.7M
SYSTEM
CPU	Intel® Celeron® J6412 (2.0 GHz) processor	Intel® Core™ i5-10210U (1.6 GHz) processor	Intel Core™ i7-10710U (1.1 GHz) processor
Memory	1x SO-DIMM DDR4 3200MHz, up to 16GB	2x SO-DIMM DDR4 2666MHz, up to 32GB	2x SO-DIMM DDR4 2666MHz, up to 32GB
Storage	1x 2.5" SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD
Operating System	Windows 10 Windows 11
I/O PORTS
USB	2x USB 3.0 2x USB 2.0
Serial	2x COM : COM1 : RS-232 COM2 : RS-232/422/485)
Ethernet	2x LAN GbE
Display	1x HDMI 1x VGA
SIM Card Slot	1x SIM slot for 4G (optional)
Antenna	2x SMA antenna holes
EXPANSION SLOT
Mini PCIe	1 x M.2 E for WI-FI 1x full length Mini PCIe for mSATA
RF COMMUNICATION
Wi-Fi	Mini PCIe expansion (optional)
Cellular	Mini PCIe expansion (optional)
Bluetooth	Mini PCIe expansion (optional)
AUDIO
Audio	Mic in, line out
Speaker	2Ω5W speaker (optional)
POWER
Button	M8
Remote Power On/Oﬀ	1x Remote switch connector
DC Input	12 VDC (9-36VDC optional)
Power Connector	2-pin phoenix terminal
Power Consumption	23W	29W
Power Adaptor	AC-DC, 12V@5A, 60W		AC-DC, 12V@7A, 84W
MECHANICAL
Dimensions (W x D x H mm)	528 x 326 x 66 mm (20.7 x 12.8 x 2.6 inches)
Weight (kg)	7.9 kg (17.4 lbs)
Mounting	Panel mount Wall mount bracket VESA 100
Material	Aluminum alloy panel All-metal chassis
ENVIRONMENT
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	10% to 95% @ 40°C (104°F), non-condensing
Vibration	5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
IP Rating	IP65 compliant (Front Panel)
CERTIFICATION
EMC	CE, FCC
PACKING LIST
Packing	1x XIP-21215D1 1x AC-DC power adapter 12x Panel mounting buckles 1x Warranty card

Documents

Documentation 21.5" XIP-21215D1 Industrial Panel PC with Mini PCIe for Wi-Fi, Bluetooth, and 4G networking

Datasheet 21.5" XIP-21215D1 Industrial Panel PC with Mini PCIe for Wi-Fi, Bluetooth, and 4G networking

Datasheet Industrial Panel PC 21.5-inch XIP-21215D1 Intronix Systems
