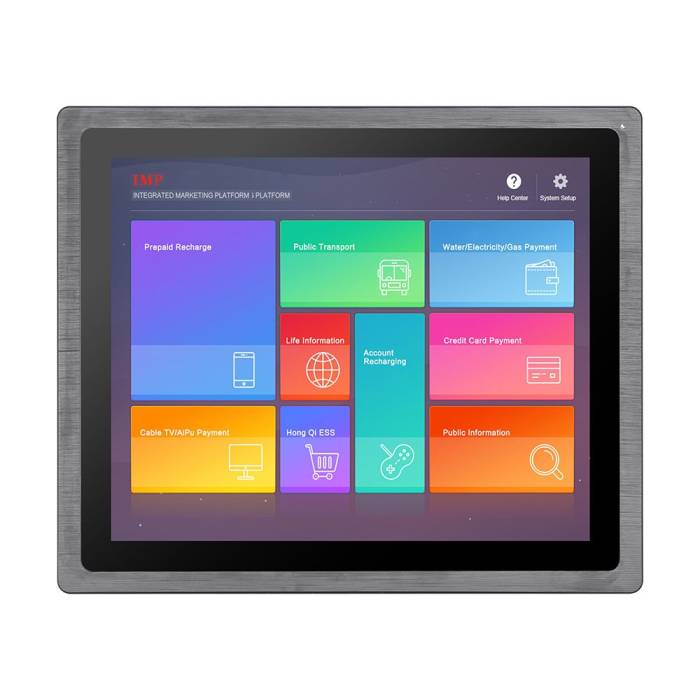

17" outdoor industrial monitor XBM-23170T1 with 1000 nits brightness

We are pleased to present the Intronix Systems XBM-23170T1 17" 1000 nits industrial display.

The XBM-23170T1 17-inch industrial monitor focuses above all on readability and robustness. Its projected capacitive (P-CAP) touch panel combined with optical bonding ensures excellent touch accuracy, a glare-free display and high resistance to shock and vibration. With a light transmission of over 88%, the image remains clear and contrasted, even in bright environments.

The 1280×1024 resolution provides a clear and structured display, ideal for operator stations, synoptics or control interfaces. Its brightness of 1000 nits, coupled with an automatic sensor, continuously adjusts the intensity to maintain stable visibility in all conditions. The 1000:1 contrast ratio improves detail readability, which is essential for critical applications.

In terms of connectivity, the XBM-23170T1 covers most integration needs. It offers DVI, HDMI and VGA video inputs, allowing it to be connected to both recent systems and older controllers. The touch interface is provided via an RJ45 port configured as USB, supplied with a dedicated cable. An audio I/O port is also provided for environments requiring audible alerts or simple audio interactions. This flexibility facilitates integration without overly complex adaptation.

In terms of environmental conditions, the device supports a wide power supply range from 12 to 36 VDC via a 2-pin Phoenix terminal block, with the option of a 5.5×2.1 mm threaded connector depending on the application. A 24 V/2.5 A adapter is provided to ensure a stable power supply. The industrial monitor operates between -20°C and 70°C and supports storage up to 80°C, offering consistent reliability in demanding environments. Its aluminium alloy chassis ensures rigidity and durability. Multiple mounting options — panel, wall, flush, VESA, suspended, desktop or foldable — offer great freedom of integration in any type of installation.

The XBM-23170T1 monitor is naturally at home in production lines, PLCs, SCADA systems, OEM equipment, logistics platforms and energy control applications.

Ordering information
