17" Industrial Panel PC XIP-21170D1 12VDC power supply Temperature range: -10°C to +50°C

Quantity

This product is currently out of stock. It will be restocked shortly.

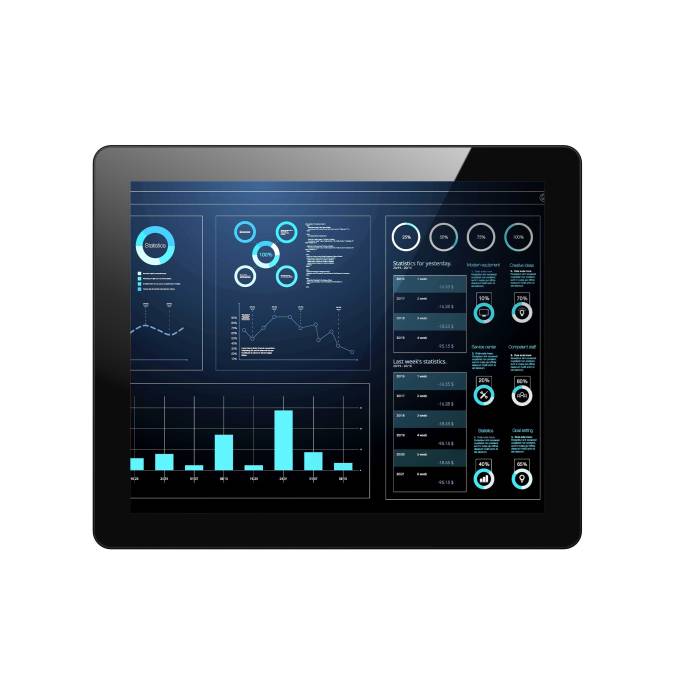

XIP-21170D1 Industrial Panel PC with 17-inch touchscreen

17" Industrial Panel PC XIP-21170D1 12VDC power supply Temperature range: -10°C to +50°C

Name: 17" Industrial Panel PC XIP-21170D1 12VDC power supply Temperature range: -10°C to +50°C
Availability: InStock
Author: Intronix Systems

Ref : XIP-21170D1

17" LED-backlit LCD with capacitive or resistive touch screen
Rugged aluminum enclosure and fanless design
Intel® Core™ U-Series / Celeron® processor
2x COM, 4x USB, 2x LAN, 1x VGA, 1x HDMI
Supports Wi-Fi, 4G
VESA 100 mount and panel mount compatibility
IP65 compliant front panel

12VDC power input

Fanless

Touch display

Windows 10/11

Wide temperature

17" Industrial Panel PC XIP-21170D1 12VDC power supply Temperature range: -10°C to +50°C

Quantity

Request more information

This product is currently out of stock. It will be restocked shortly.

Technical datasheet

Overview

Overview 17" Industrial Panel PC XIP-21170D1 12VDC power supply Temperature range: -10°C to +50°C

We are pleased to present the Intronix Systems XIP-21170D1 17-inch industrial Panel PC.

The 17" industrial Panel PC combines a resistive or capacitive touchscreen with a high-performance embedded system, ideal for industrial environments. Its touchscreen has a resolution of 1280 x 1024 pixels, with a contrast ratio of 1000:1 and a brightness of 250 nits. The touchscreen is available in a capacitive multi-touch version (≥7H, 87% transmittance) or a 5-wire resistive version (≥3H, 80% transmittance), depending on your needs.

Its architecture is based on Intel® processors:

Celeron® J6412 (2.0 GHz)
Core™ i5-10210U (1.6 GHz)
Core™ i7-10710U (1.1 GHz)

The memory is expandable up to 32 GB of DDR4, with 1 or 2 SO-DIMM slots depending on the processor chosen. In terms of storage, it supports a 2.5" SATA HDD/SSD or an mSATA SSD via Mini PCIe.

The XIP-21170D1 industrial Panel PC is compatible with Windows 10 and Windows 11, and has a full range of connectivity options:

4 USB ports (2x USB 3.0, 2x USB 2.0)
2 serial COM ports (RS-232 / RS-232/422/485)
2 Gigabit LAN ports
1x HDMI and 1x VGA video outputs

Wireless connectivity is available as an option via Mini PCIe: Wi-Fi, Bluetooth, 4G with SIM slot and SMA inputs for antennas.

This touchscreen computer can be installed via cabinet door mounting or VESA 100 bracket. It is constructed with a metal chassis and aluminium alloy front panel, rated IP65 against water splashes and dust. Its power supply operates at 12 VDC (optional 9 to 36 VDC), with a consumption of 23 to 25W depending on the configuration.

Dimensions: 393 x 330 x 66 mm – Weight: 5.6 kg

Ordering information

Ref.	Description
XIP-21170D1J6412R	17" LCD, Intel Celeron J6412, Resistive, DC 12V input, Phoenix 2P TB
XIP-21170D1J6412C	17" LCD, Intel Celeron J6412, P-Cap, DC 12V input, Phoenix 2P TB
XIP-21170D1I510UR	17" LCD, Intel Comet Lake Core-i5-10210U, Resistive, DC 12V input, Phoenix 2P TB
XIP-21170D1I510UC	17" LCD, Intel Comet Lake Core-i5-10210U, P-Cap, DC 12V input, Phoenix 2P TB
XIP-21170D1I710UR	17" LCD, Intel Comet Lake Core-i7-10710U, Resistive, DC 12V input, Phoenix 2P TB
XIP-21170D1I710UC	17" LCD, Intel Comet Lake Core-i7-10710U, P-Cap, DC 12V input, Phoenix 2P TB

💡 Please contact us now for further information.

Specifications

Features 17" Industrial Panel PC XIP-21170D1 12VDC power supply Temperature range: -10°C to +50°C

DISPLAY
Size	17-inch
Touch type	Projected capacitive multitouch 5-wire resistive touch
Transmittance	87% (capacitive) 80% (resistive)
Control Interface	USB
Surface Hardness	≥7H ≥3H
Resolution	1280 x 1024
Luminance	250 nits
Contrast ratio	1000:1
View angles	85 (left), 85 (right), 80 (up), 80 (down)
LED Lifetime	30 000 hrs
Color	16.7M
SYSTEM
CPU	Intel® Celeron® J6412 (2.0 GHz) processor	Intel® Core™ i5-10210U (1.6 GHz) processor	Intel Core™ i7-10710U (1.1 GHz) processor
Memory	1x SO-DIMM DDR4 3200MHz, up to 16GB	2x SO-DIMM DDR4 2666MHz, up to 32GB	2x SO-DIMM DDR4 2666MHz, up to 32GB
Storage	1x 2.5" SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD
Operating System	Windows 10 Windows 11
I/O PORTS
USB	2x USB 3.0 2x USB 2.0
Serial	2x COM : COM1 : RS-232 COM2 : RS-232/422/485)
Ethernet	2x LAN GbE
Display	1x HDMI 1x VGA
SIM Card Slot	1x SIM slot for 4G (optional)
Antenna	2x SMA antenna holes
EXPANSION SLOT
Mini PCIe	1 x M.2 E for WI-FI 1x full length Mini PCIe for mSATA	1x full length Mini PCle for Wi-Fi 1x full length Mini PCle for mSATA
RF COMMUNICATION
Wi-Fi	Mini PCIe expansion (optional)
Cellular	Mini PCIe expansion (optional)
Bluetooth	Mini PCIe expansion (optional)
AUDIO
Audio	Mic in, line out
Speaker	2Ω5W speaker (optional)
POWER
Button	M8
Remote Power On/Oﬀ	1x Remote switch connector
DC Input	12 VDC (9-36VDC optional)
Power Connector	2-pin phoenix terminal
Power Consumption	23W	25W
Power Adaptor	AC-DC, 12V@5A, 60W		AC-DC, 12V@7A, 84W
MECHANICAL
Dimensions (W x D x H mm)	393 x 330 x 66 mm (15.47 x 12.99 x 2.60 inches)
Weight (kg)	5.6 kg (12.35 lbs)
Mounting	Panel mount Wall mount bracket VESA 100
Material	Aluminum alloy panel All-metal chassis
ENVIRONMENT
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	10% to 95% @ 40°C (104°F), non-condensing
Vibration	5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
IP Rating	IP65 compliant (Front Panel)
CERTIFICATION
EMC	CE, FCC
PACKING LIST
Packing	1x XIP-21170D1 1x AC-DC power adapter 10x Panel mounting buckles 1x Warranty card
