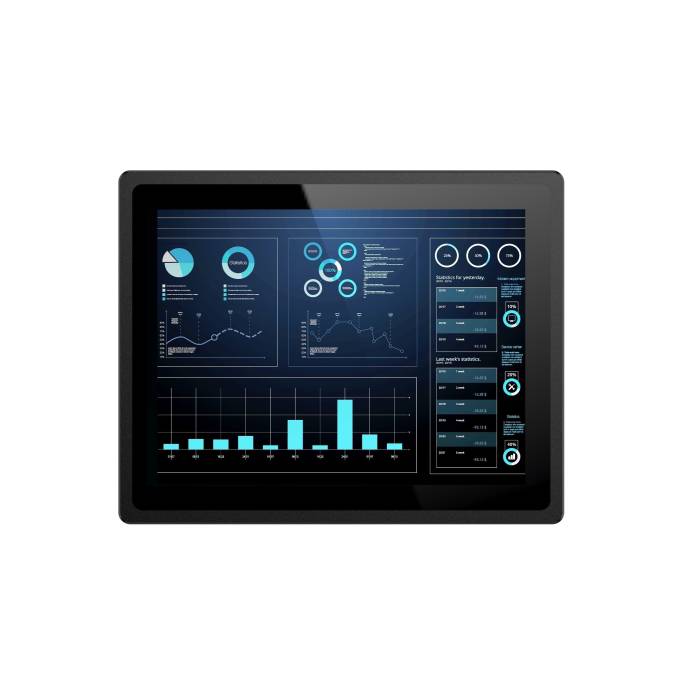

Intronix Systems XIP-21150D1 industrial panel PC with Celeron J6412 or Core i5-10210u or i7-10710u processor

15-inch Industrial pPanel PC XIP-21150D1 with 1024x768 screen and 350 nits brightness

Name: 15-inch Industrial pPanel PC XIP-21150D1 with 1024x768 screen and 350 nits brightness
Availability: InStock
Author: Intronix Systems

Ref : XIP-21150D1

15" LED-backlit LCD with capacitive or resistive touch screen
Rugged aluminum enclosure and fanless design
Intel® Core™ U-Series / Celeron® processor
2x COM, 4x USB, 2x LAN, 1x VGA, 1x HDMI
Supports Wi-Fi, 4G
VESA 100 mount and panel mount compatibility
IP65 compliant front panel

12VDC power input

Fanless

IP65

Windows 10/11

Wide temperature

15-inch Industrial pPanel PC XIP-21150D1 with 1024x768 screen and 350 nits brightness

Quantity

Request more information

This product is currently out of stock. It will be restocked shortly.

Technical datasheet

Overview

Overview 15-inch Industrial pPanel PC XIP-21150D1 with 1024x768 screen and 350 nits brightness

We are pleased to present the Intronix Systems XIP-21150D1 15-inch industrial Panel PC.

The XIP-21150D1 15-inch Panel PC is designed to meet the needs of industrial environments where compactness, performance and robustness are important features.

Its 15-inch touchscreen offers a resolution of 1024 x 768, with a wide viewing angle (89° in all directions) and a brightness of 350 nits. Available in capacitive multitouch or resistive touchscreen versions, it adapts to different types of interactions.

This model is available with a range of Intel® processors from Celeron® J6412 to Core™ i7-10710U, as well as up to 32 GB of DDR4 memory. It also supports a variety of storage solutions: SSD, 2.5-inch HDD or mSATA via Mini PCIe.

In terms of connectivity, it features 4 USB ports, 2 configurable COM ports, 2 Gigabit LAN ports, as well as HDMI and VGA outputs. A 4G option is available thanks to a SIM slot, and several wireless extensions (Wi-Fi, Bluetooth, cellular) can be added via Mini PCIe ports.

Its all-metal design, combined with an IP65 front panel, allows for robust installation in industrial environments. It withstands operating temperatures ranging from -10°C to +50°C and can be mounted on a front panel or on a VESA 100 mount.

Designed to last, this XIP-21150D1 industrial Panel PC combines performance, adaptability and robust design to support your industrial, automation or operator interface projects.

Ordering information

Ref.	Description
XIP-21150D1J6412R	15" LCD, Intel Celeron J6412, Resistive, DC 12V input, Phoenix 2P TB
XIP-21150D1J6412C	15" LCD, Intel Celeron J6412, P-Cap, DC 12V input, Phoenix 2P TB
XIP-21150D1I510UR	15" LCD, Intel Comet Lake Core-i5-10210U, Resistive, DC 12V input, Phoenix 2P TB
XIP-21150D1I510UC	15" LCD, Intel Comet Lake Core-i5-10210U, P-Cap, DC 12V input, Phoenix 2P TB
XIP-21150D1I710UR	15" LCD, Intel Comet Lake Core-i7-10710U, Resistive, DC 12V input, Phoenix 2P TB
XIP-21150D1I710UC	15" LCD, Intel Comet Lake Core-i7-10710U, P-Cap, DC 12V input, Phoenix 2P TB

💡 Please contact us directly using the form below if you require a personalised quote or have any further questions.

Specifications

Features 15-inch Industrial pPanel PC XIP-21150D1 with 1024x768 screen and 350 nits brightness

DISPLAY
Size	15-inch
Touch type	Projected capacitive multitouch 5-wire resistive touch
Transmittance	87% (capacitive) 80% (resistive)
Control Interface	USB
Surface Hardness	≥7H ≥3H
Resolution	1024 x 768
Luminance	350 nits
Contrast ratio	1000:1
View angles	89 (left), 89 (right), 89 (up), 89 (down)
LED Lifetime	50 000 hrs
Color	16.7M
SYSTEM
CPU	Intel® Celeron® J6412 (2.0 GHz) processor	Intel® Core™ i5-10210U (1.6 GHz) processor	Intel Core™ i7-10710U (1.1 GHz) processor
Memory	1x SO-DIMM DDR4 3200MHz, up to 16GB	2x SO-DIMM DDR4 2666MHz, up to 32GB	2x SO-DIMM DDR4 2666MHz, up to 32GB
Storage	1x 2.5" SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD
Operating System	Windows 10 Windows 11
I/O PORTS
USB	2x USB 3.0 2x USB 2.0
Serial	2x COM : COM1 : RS-232 COM2 : RS-232/422/485)
Ethernet	2x GbE LAN
Display	1x HDMI 1x VGA
SIM Card Slot	1x SIM slot for 4G (optional)
Antenna	2x SMA antenna holes
EXPANSION SLOT
Mini PCIe	1 x M.2 E for WI-FI 1x full length Mini PCIe for mSATA	1x full length Mini PCle for Wi-Fi 1x full length Mini PCle for mSATA
RF COMMUNICATION
Wi-Fi	Mini PCIe expansion (optional)
Cellular	Mini PCIe expansion (optional)
Bluetooth	Mini PCIe expansion (optional)
AUDIO
Audio	Mic in, line out
Speaker	2Ω5W speaker (optional)
POWER
Button	M8
Remote Power On/Oﬀ	1x Remote switch connector
DC Input	12 VDC (9-36VDC optional)
Power Connector	2-pin phoenix terminal
Power Consumption	23W	25W
Power Adaptor	AC-DC, 12V@5A, 60W		AC-DC, 12V@7A, 84W
MECHANICAL
Dimensions (W x D x H mm)	370 x 294 x 65 mm (14.6 x 11.6 x 2.6 inches)
Weight (kg)	4.2 kg (9.2 lbs)
Mounting	Panel mount Wall mount bracket VESA 100
Material	Aluminum alloy panel All-metal chassis
ENVIRONMENT
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	10% to 95% @ 40°C (104°F), non-condensing
Vibration	5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
IP Rating	IP65 compliant (Front Panel)
CERTIFICATION
EMC	CE, FCC
PACKING LIST
Packing	1x XIP-21150D1 1x AC-DC power adapter 8x Panel mounting buckles 1x Warranty card
