15.6" Industrial Panel PC XIP-21156D1 with IP65 and capacitive multitouch screen

Quantity

This product is currently out of stock. It will be restocked shortly.

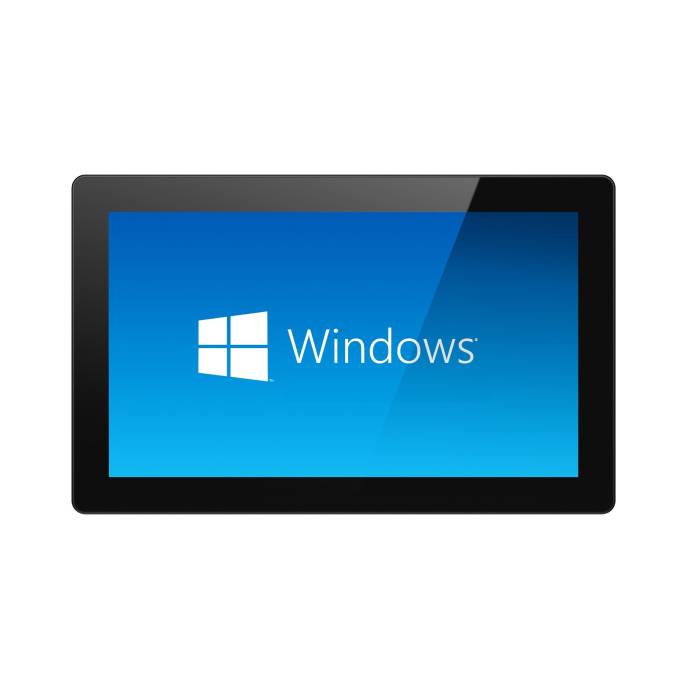

Intronix Systems XIP-21156D1 industrial panel PC with Windows 10 or 11 operating system

15.6" Industrial Panel PC XIP-21156D1 with IP65 and capacitive multitouch screen

Name: 15.6" Industrial Panel PC XIP-21156D1 with IP65 and capacitive multitouch screen
Availability: InStock
Author: Intronix Systems

Ref : XIP-21156D1

15.6" LED-backlit LCD with capacitive multitouch
Rugged aluminum enclosure and fanless design
Intel® Core™ U-Series / Celeron® processor
2xCOM, 4x USB, 2x LAN, 1x VGA, 1x HDMI
Supports Wi-Fi, 4G
VESA 100 mount and panel mount compatibility
IP65 compliant front panel

Fanless

IP67

Touch display

Windows 10/11

Wide temperature

15.6" Industrial Panel PC XIP-21156D1 with IP65 and capacitive multitouch screen

Quantity

Request more information

This product is currently out of stock. It will be restocked shortly.

Technical datasheet

Overview

Overview 15.6" Industrial Panel PC XIP-21156D1 with IP65 and capacitive multitouch screen

We are pleased to present the Intronix Systems XIP-21152D1 15.6-inch Windows Industrial Panel PC.

The 15.6-inch Panel PC features a Full HD 1920 x 1080 resolution capacitive multi-touch screen with 450 nits brightness and 1000:1 contrast ratio. The screen offers excellent readability in different environments thanks to a wide viewing angle (85° in all directions) and 87% light transmission. The touch surface has a hardness rating of ≥7H, making it suitable for frequent interaction in technical environments.

Under the chassis, this model offers a range of Intel® processors from Celeron® J6412 to Core™ i7-10710U, with DDR4 memory expandable up to 32 GB depending on the configuration. Storage is modular via a 2.5" SATA HDD/SSD or an mSATA SSD mounted on a Mini PCIe port.

It is compatible with Windows 10 and Windows 11, allowing integration into existing or recent systems.

It includes the following inputs/outputs:

4x USB ports (2x 3.0, 2x 2.0)
2x COM ports (RS-232 and RS-232/422/485)
2x Gigabit LAN ports
1x HDMI and 1xVGA video outputs

Wireless extensions are possible via Mini PCIe for Wi-Fi, Bluetooth or 4G, with an integrated SIM slot and two SMA antenna inputs.

Designed with an all-metal chassis and aluminium front panel, this Panel PC is intended for cabinet door or VESA mounting. It supports operating temperatures from -10°C to +50°C and has an IP65 front panel, protected against water splashes and dust.

With power consumption of 25 to 28W depending on the CPU, and a 12 VDC power supply, this model is designed for flexible integration into embedded systems, interactive terminals, or industrial applications.

Ordering information

Ref.	Description
XIP-21156D1J6412C	15.6" LCD, Intel Celeron J6412, P-Cap, DC 12V input, Phoenix 2P TB
XIP-21156D1I510UC	15.6" LCD, Intel Comet Lake Core-i5-10210U, P-Cap, DC 12V input, Phoenix 2P TB
XIP-21156D1I710UC	15.6" LCD, Intel Comet Lake Core-i7-10710U, P-Cap, DC 12V input, Phoenix 2P TB

💡 For further information or to request a quotation, please do not hesitate to contact us using the form below.

Specifications

Features 15.6" Industrial Panel PC XIP-21156D1 with IP65 and capacitive multitouch screen

DISPLAY
Size	15.6-inch
Touch type	Projected capacitive multitouch
Transmittance	87% (capacitive)
Control Interface	USB
Surface Hardness	≥7H
Resolution	1920 x 1080
Luminance	450 nits
Contrast ratio	1000:1
View angles	85 (left), 85 (right), 85 (up), 85 (down)
LED Lifetime	50 000 hrs
Color	16.7M
SYSTEM
CPU	Intel® Celeron® J6412 (2.0 GHz)		Intel® Core™ i5 10210U (1.6 GHz)	Intel® Core™ i7 10710U (1.1 GHz)
Memory	1x SO-DIMM DDR4 3200MHz, up to 16GB		2x SO-DIMM DDR4 2666MHz, up to 32GB	2x SO-DIMM DDR4 2666MHz, up to 32G
Storage	1x 2.5" SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD
Operating System	Windows 10 Windows 11
I/O PORTS
USB	2x USB 3.0 2x USB 2.0
Serial	2x COM : COM1 RS-232 COM2 RS-232/422/485
Ethernet	2x GbE LAN
Display	1x HDMI 1x VGA
SIM Card Slot	1x SIM slot for 4G (optional)
Antenna	2x SMA antenna holes
EXPANSION SLOT
Mini PCIe	1x M.2 E for WI-FI 1x full length Mini PCIe for mSATA	1x full length Mini PCle for Wi-Fi 1x full length Mini PCle for mSATA
RF COMMUNICATION
Wi-Fi	Mini PCIe expansion (optional)
Cellular	Mini PCIe expansion (optional)
Bluetooth	Mini PCIe expansion (optional)
AUDIO
Audio	Mic in, line out
Speaker	2Ω5W speaker (optional)
POWER
Button	Yes
Remote Power On/Oﬀ	1x Remote switch connector
DC Input	12 VDC (9-36 VDC optional)
Power Connector	2-pin phoenix terminal
Power Consumption	25W	28W
Power Adaptor	AC-DC, 12V@5A, 60W	AC-DC, 12V@7A, 84W
MECHANICAL
Dimensions (W x D x H mm)	399 x 249 x 70 mm (15.7 x 9.8 x 2.7 inches)
Weight (kg)	5.9 kg (13 lbs)
Mounting	Panel mount Wall mount bracket VESA 100
Material	Aluminum alloy panel All-metal chassis
ENVIRONMENT
Operating Temperature	-10°C to 50°C (14 to 122°F)
Storage Temperature	-20°C to 60°C (-4 to 140°F)
Relative Humidity	10% to 95% @ 40°C (104°F), non-condensing
Vibration	5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
IP Rating	IP65 compliant (Front Panel)
CERTIFICATION
EMC	CE, FCC
PACKING LIST
Packing	1x XIP-21156D1 1x AC-DC power adapter 10x Panel mounting buckles 1x Warranty card

Documents

Documentation 15.6" Industrial Panel PC XIP-21156D1 with IP65 and capacitive multitouch screen

Datasheet 15.6" Industrial Panel PC XIP-21156D1 with IP65 and capacitive multitouch screen

Datasheet Industrial Panel PC 15.6-inch XIP-21156D1 Intronix Systems
