Technical datasheet
Overview

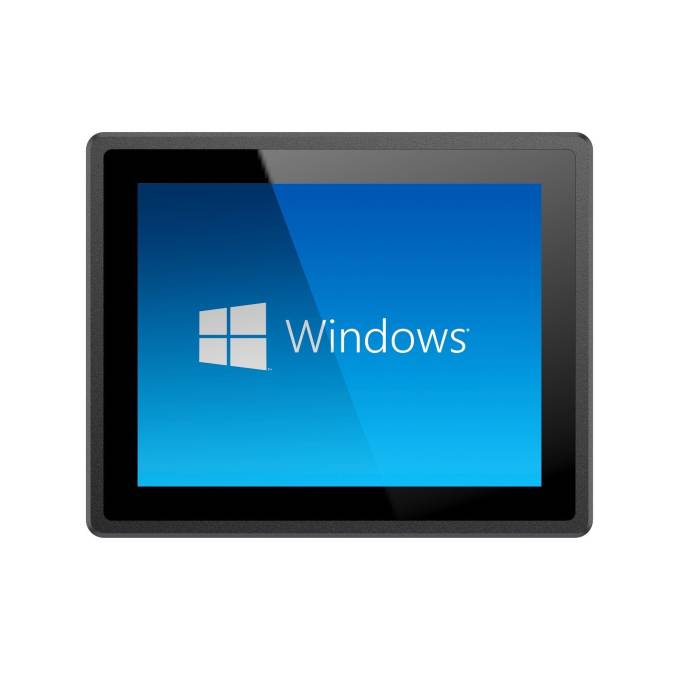

-Overview 12.1-inch Industrial Panel PC XIP-21121D1 Windows 10 or 11 Intel® Core™ U / Celeron® series
We are pleased to present the XIP-21121D1 12.1" Windows Industrial Panel PC.
The XIP-21121D1 12.1" Panel PC is an ideal all-in-one solution for industrial or professional environments requiring a robust and high-performance touch screen. With its 12.1-inch screen, it offers a resolution of 1024 x 768 pixels and a contrast ratio of 1000:1, ensuring sharp and clear images. Whether you use capacitive or resistive touch mode, the touch is precise and responsive. Its hard surface, with a resistance of up to 7H, makes it suitable for harsh environments.
The heart of the system is based on powerful Intel® processors, from Celeron® J6412 to Core™ i7-10710U, offering a range of performance to suit your needs. It supports up to 32GB of DDR4 memory, ensuring smooth and fast execution capabilities for your applications. You also have the option of choosing storage with a 2.5-inch SSD or HDD and an expansion option via Mini PCIe.
The XIP-21121D1 Panel PC has a wide range of connectivity options: 4 USB ports, 2 COM ports, 2 Ethernet ports, as well as HDMI and VGA inputs for various video outputs. You can also add a 4G connection via a SIM slot for greater flexibility.
In terms of wireless connectivity, it allows the addition of a Wi-Fi, Bluetooth or cellular module via a Mini PCIe port. This model supports Windows 10 or 11 operating systems, providing a stable and flexible environment for your professional applications.
Robust, it is designed to withstand operating temperatures ranging from -10°C to +50°C, and it complies with the IP65 standard on the front panel, providing protection against dust and splashes. Its all-metal housing and VESA mounting allow for easy and secure installation, especially in environments where space and robustness are essential.
Whether you need a solution for industrial management, automation, or any application requiring touch control in harsh conditions, the XIP-21121D1 12.1-inch Panel PC will meet your expectations with efficiency and simplicity.
Ordering information
|
Ref. |
Description |
|
XIP-21121D1J6412R |
12.1" LCD, Intel Celeron J6412, Resistive, DC 12V input, Phoenix 2P TB |
|
XIP-21121D1J6412C |
12.1" LCD, Intel Celeron J6412, P-Cap, DC 12V input, Phoenix 2P TB |
|
XIP-21121D1I510UR |
12.1" LCD, Intel Comet Lake Core-i5-10210U, Resistive, DC 12V input, Phoenix 2P TB |
|
XIP-21121D1I510UC |
12.1" LCD, Intel Comet Lake Core-i5-10210U, P-Cap, DC 12V input, Phoenix 2P TB |
|
XIP-21121D1I710UR |
12.1" LCD, Intel Comet Lake Core-i7-10710U, Resistive, DC 12V input, Phoenix 2P TB |
|
XIP-21121D1I710UC |
12.1" LCD, Intel Comet Lake Core-i7-10710U, P-Cap, DC 12V input, Phoenix 2P TB |
