Technical datasheet
Overview

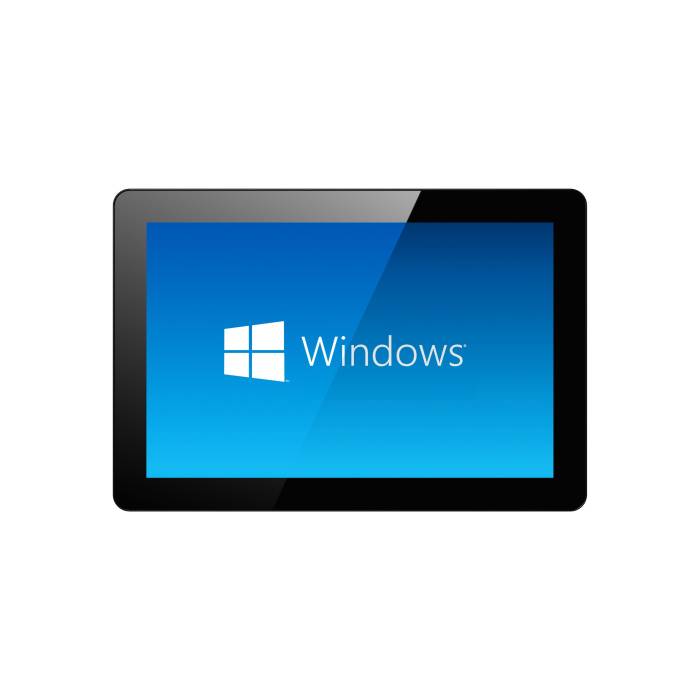

-Overview 10.1-inch Industrial Panel PC XIP-21101D1 1x COM 3x USB 2x LAN 1x VGA
The XIP-21101D1 industrial panel PC is specially designed for industrial environments. With its 10.1-inch touchscreen, it allows intuitive and precise control of applications, even in harsh conditions. The screen is available in a multi-touch capacitive or 5-wire resistive version, with a hard surface rating of up to 7H and high transmittance, offering excellent readability and optimal responsiveness. Its brightness of 350 nits, contrast ratio of 1000:1 and wide viewing angles ensure clear viewing, even in brightly lit areas.
The XIP-21101D1 Panel PC supports Intel® Celeron® J1900 or J6412 processors and can accommodate up to 16 GB of DDR4 memory, enabling it to support complex industrial applications and a variety of operating systems, from Windows 7 to Windows 11. The interfaces offered – USB 3.0 and 2.0, RS-232, dual GbE LAN, VGA and Mini PCIe slots for Wi-Fi, mSATA or cellular modules – offer great flexibility for connecting different equipment and integrating the Panel PC into existing installations.
With a full aluminium and metal chassis and IP65 protection on the front panel, the device is resistant to water splashes, dust and mechanical stress (vibration, shock). It operates in temperatures ranging from -10°C to 50°C and withstands the vibrations commonly found in industrial environments, making it suitable for machine supervision, production line management and PLC control.
At Intronix Systems, we support our customers every step of the way: from model selection and connectivity options to deployment and technical support. Our goal is to provide equipment tailored to the specific needs of each company, while ensuring simple and efficient day-to-day use, to optimise productivity and facilitate the control of industrial operations.
Ordering information
|
Ref. |
Description |
|
XIP-21101D1J1900R/ |
10.1" LCD, Intel Celeron J1900, Resistive, DC 12V input, Phoenix 2P TB |
|
XIP-21101D1J1900C/ |
10.1" LCD, Intel Celeron J1900, P-Cap, DC 12V input, Phoenix 2P TB |
|
XIP-21101D1J6412R/ |
10.1" LCD, Intel Celeron J6412, Resistive, DC 12V input, Phoenix 2P TB |
|
XIP-21101D1J6412C/ |
10.1" LCD, Intel Celeron J6412, P-Cap, DC 12V input, Phoenix 2P TB |
💡 Please contact us now if you have any questions or would like a quotation for the XIP-21101D1 Panel PC.
Specifications
+Documents
+
